设计说明 ​

源码说明 ​

本模块源码位于 source/artinchip/aic-mpp/middle_media 下，目录结构如下：

aic-mpp
        |--middle-media
                |-base
                |       |-inlcude
                |       |       |-aic_message.h       //定义公共消息接口
                |       |       |-aic_parser.h        //定义parser 接口
                |       |       |-aic_stream.h        //定义stream接口
                |       |       |-aic_render.h        //定义视频渲染接口
                |       |       |-aic_audio_render.h  //定义音频渲染接口
                |       |
                |       |-message    //消息接口具体实现
                |       |-parser     //parser接口具体实现
                |       |-stream     //stream接口具体实现
                |       |-render     //音视频渲染接口具体实现
                |
                |-audio_decoder  //音频软件解码器，无硬件音频解码器。
                |
                |-component      //Player组件
                |       |-src                                //middle media component各组件具体实现
                |       |       |-mm_adec_component.c            //音频解码组件,输入编码音频数据,输出解码后的pcm数据
                |       |       |-mm_audio_render_component.c    //音频渲染组件，将解码后音频送到音频设备播放
                |       |       |-mm_clock_component.c           //时钟组件，为音视频同步服务
                |       |       |-mm_demuxer_component.c         //解封装组件,识别文件的封装格式,从文件中解析出音视频packet
                |       |       |-mm_vdec_component.c            //视频解码组件，输入编码视频数据，输出解码后的视频图像
                |       |       |-mm_video_render_component.c    //视频渲染组件，将解码后图像显示在屏幕上
                |       |-mm_core.c                          //middle media component公共核心接口具体实现
                |       |-inlcude                            //middle media component公共头文件
                |               |-mm_component.h             //middle media各组件通用接口
                |               |-mm_core.h                  //middle media组件对外核心接口
                |               |-mm_index.h                 //middle media组件公共结构体
                |
                |-player
                        |-inlcude
                        |       |-aic_player.h  //player接口定义
                        |
                        |aic_player.c      //player接口实现

注意

component 相比 V1 版本播放器删除 OMX 的 component 设计，变更为自研的 mm_component 框架，内容更加精简。

为了避免整体框架调整过大，该框架部分 API 仍然借鉴了部分 OMX 的思想，使得各组件间调用的接口更加统一和规范。

模块架构 ​

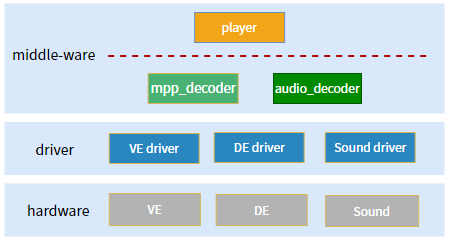

player 在系统架构中的层次如下图：

- player 是中间件，向 App 提供 player 接口。 - player 视频解码调用 mpp_decoder。 - player 音频解码调用 audio_decoder。 - player 视频渲染操作 DE driver 提供的接口。 - player 音频渲染操作 Sound driver 提供的接口。 - player 内部实现解封装的功能。

audio_decoder（音频解码器）

audio_decoder 是纯软件解码，目前移植了第三方的 libmad 和 faad，支持 MP3 和 AAC 解码。

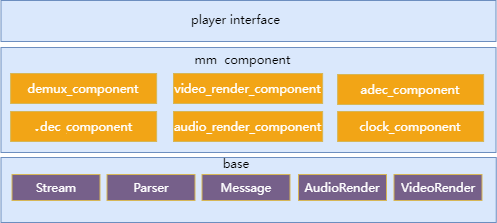

player 模块架构如下图，分为 3 层：

  • 第 1 层，player interface，向上提供 player 接口，向下调用 mm 组件实现 player 功能。
  • 第 2 层，component，提供统一的组件操作接口。每个组件完成特定的功能，比如视频解码、视频渲染等。
  • 第 3 层，Base，提供 parser，stream，message，render 接口和实现。
    • parser 提供解封装的功能，比如 MP4 封装。
    • stream 提供解析流协议的功能，本地文件也看作是一种流协议，目前也只支持本地文件。
    • message 为组件传递消息提供支持。
    • render 提供底层音视频渲染的功能。

目前支持 MP4 和 MP3 封装的本地文件，后续扩展其他流协议和封装格式，通过增加相应的 parser 和 stream 实现。

player interface 的设计 ​

这一层是对外提供的接口，用户只与这一层交互即可。

状态机设计 ​

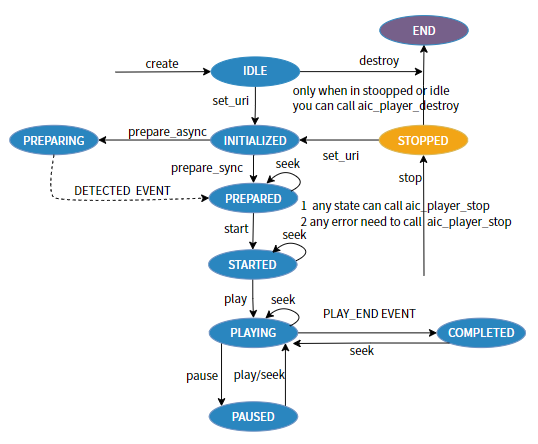

player interface 基于状态机设计，状态转换如图所示：

状态机说明:

  • IDLE: 闲置状态，刚创建完 player 处于此状态，此状态只能通过 aic_player_set_uri 转换为 INITIALIZED。
  • INITIALIZED: 初始化完成状态，与 IDLE 状态相比，仅多了媒体数据源的信息。
  • PREPARING: 在 INITIALIZED 状态调用异步 aic_player_prepare_async 到达此状态，主要是打开媒体文件并解析它，解析成功后自动转换为 PREPARED 状态，通过事件 AIC_PLAYER_EVENT_DEMUXER_FORMAT_DETECTED 告知 app。
  • PREPARED: 在 INITIALIZED 状态调用同步 aic_player_prepare_sync 到达此状态，主要是打开媒体文件并解析它，解析完成后转换到 PREPARED 状态。
  • STARTED: 在 PREPARED 状态调用 aic_player_start 到达此状态，主要是根据解析出的文件创建音视频解码线程和音视频显示线程，可以随时进行播放了。
  • PLAYING: 在 STARTED 或 PAUSED 状态调用 aic_player_play 到达此状态，开始播放媒体。
  • PAUSED: 在 PLAYING 状态调用 aic_player_pause 到达此状态，暂停播放媒体。
  • COMPLETED: 媒体播放完毕后，自动转换为 COMPLETED 状态，并以事件 AIC_PLAYER_EVENT_PLAY_END 告知 app。
  • STOPPED: 无论处于任何状态都可以调用 aic_player_stop 回到 STOPPED 状态。切换文件时，无论是否播放结束，要先调用 aic_player_stop 停止当前文件的播放。
  • END: 这里 END 表示释放掉播放器所有的资源，不是播放器的内部状态。

数据结构设计 ​

c
// 事件回调函数
typedef s32 (*event_handler)(void* app_data, s32 event, s32 data1, s32 data2);

// 事件
enum aic_player_event {
    AIC_PLAYER_EVENT_PLAY_END = 0,  // 文件播放结束
    AIC_PLAYER_EVENT_PLAY_TIME,      // 播放时刻, pts = data1<<32 | data2
    AIC_PLAYER_EVENT_DEMUXER_FORMAT_DETECTED, // 文件解析成功
    AIC_PLAYER_EVENT_DEMUXER_FORMAT_NOT_DETECTED // 文件解析失败
};

struct aic_video_stream {
    s32 width;
    s32 height;
};

struct aic_audio_stream {
    s32 nb_channel;
    s32 bits_per_sample;
    s32 sample_rate;
};

// 媒体信息
struct av_media_info {
    s64 file_size;
    s64 duration;
    u8 has_video;
    u8 has_audio;
    u8 seek_able;
    struct aic_video_stream video_stream;
    struct aic_audio_stream audio_stream;
};

接口设计 ​

c
struct aic_player *aic_player_create(char *uri);
s32 aic_player_destroy(struct aic_player *player);
s32 aic_player_set_uri(struct aic_player *player, char *uri);
s32 aic_player_prepare_async(struct aic_player *player);
s32 aic_player_prepare_sync(struct aic_player *player);
s32 aic_player_start(struct aic_player *player);
s32 aic_player_play(struct aic_player *player);
s32 aic_player_pause(struct aic_player *player);
s32 aic_player_stop(struct aic_player *player);
s32 aic_player_get_media_info(struct aic_player *player, struct av_media_info *media_info);
s32 aic_player_set_event_callback(struct aic_player *player, void* app_data, event_handler event_handle);
s32 aic_player_get_screen_size(struct aic_player *player, struct mpp_size *screen_size);
s32 aic_player_set_disp_rect(struct aic_player *player, struct mpp_rect *disp_rect);
s32 aic_player_get_disp_rect(struct aic_player *player, struct mpp_rect *disp_rect);
s32 aic_player_set_mute(struct aic_player *player);
s32 aic_player_set_volum(struct aic_player *player, s32 vol);
s32 aic_player_get_volum(struct aic_player *player, s32 *vol);
s64 aic_player_get_play_time(struct aic_player *player);
s32 aic_player_seek(struct aic_player *player, u64 seek_time);
s32 aic_player_set_rotation(struct aic_player *player, int rotation_angle);
s32 aic_player_get_rotation(struct aic_player *player);
aic_player_create ​
函数原型struct aic_player *aic_player_create(char *uri)
功能说明创建 player 对象
参数定义uri：媒体文件路径
返回值player 对象
注意事项
aic_player_destroy ​
函数原型struct aic_player *aic_player_create(char *uri)
功能说明创建 player 对象
参数定义uri：媒体文件路径
返回值player 对象
注意事项
aic_player_set_uri ​
函数原型s32 aic_player_set_uri(struct aic_player *player,char *uri)
功能说明设置媒体文件路径
参数定义player：player 对象，uri：媒体文件路径
返回值0：成功，其他：失败
注意事项在 IDLE 和 STOPPED 状态起作用
aic_player_prepare_async ​
函数原型s32 aic_player_prepare_async(struct aic_player *player)
功能说明异步解析媒体文件
参数定义player：player 对象
返回值0：解析命令发送成功，其他：失败
注意事项在 INITIALIZED 状态起作用
aic_player_prepare_sync ​
函数原型s32 aic_player_prepare_sync(struct aic_player *player)
功能说明同步解析媒体文件
参数定义player：player 对象
返回值0：解析文件成功，其他：失败
注意事项在 INITIALIZED 状态起作用
aic_player_start ​
函数原型s32 aic_player_start(struct aic_player *player)
功能说明启动播放器，创建音视频解码线程和音视频渲染线程
参数定义player：player 对象
返回值0：成功，其他：失败
注意事项在 PREPARED 状态起作用
aic_player_play ​
函数原型s32 aic_player_play(struct aic_player *player)
功能说明播放媒体文件
参数定义player：player 对象
返回值0：成功，其他：失败
注意事项在 STARTED 状态起作用
aic_player_pause ​
函数原型s32 aic_player_pause(struct aic_player *player)
功能说明暂停播放媒体文件
参数定义player：player 对象
返回值0：成功，其他：失败
注意事项在 PLAYING 和 PAUSED 状态起作用
aic_player_stop ​
函数原型s32 aic_player_stop(struct aic_player *player)
功能说明停止播放，释放音视频解码线程和音视频显示线程
参数定义player：player 对象
返回值0：成功，其他：失败
注意事项任意状态都可以调用该函数来停止播放器。切换文件时，一定要调用 aic_player_stop。
aic_player_get_media_info ​
函数原型s32 aic_player_get_media_info(struct aic_player *player, struct av_media_info *media_info)
功能说明获取媒体信息
参数定义player：player 对象， media_info：媒体信息
返回值0：成功，其他：失败
注意事项在 PREPARED 和 COMPLETED 区间的状态起作用
aic_player_set_event_callback ​
函数原型s32 aic_player_set_event_callback(struct aic_player *player, event_handler event_handle)
功能说明设置事件回调函数
参数定义player：player 对象， event_handle：监听事件函数
返回值0：成功，其他：失败
注意事项一定要注册，播放结束通过回调函数通知
aic_player_get_screen_size ​
函数原型s32 aic_player_get_disp_rect(struct aic_player *player, struct mpp_rect *disp_rect)
功能说明获取显示区域
参数定义player: player 对象, disp_rect: 显示区域
返回值0: 成功, 其他: 失败
注意事项在 STARETED 和 COMPLETED 区间的状态起作用
aic_player_set_disp_rect ​
函数原型s32 aic_player_set_disp_rect(struct aic_player *player, struct mpp_rect *disp_rect)
功能说明设置显示区域
参数定义player: player 对象, disp_rect: 显示区域
返回值0: 成功, 其他: 失败
注意事项在 STARETED 和 COMPLETED 区间的状态起作用
aic_player_get_disp_rect ​
函数原型s32 aic_player_get_disp_rect(struct aic_player *player, struct mpp_rect *disp_rect)
功能说明获取显示区域
参数定义player: player 对象, disp_rect: 显示区域
返回值0: 成功, 其他: 失败
注意事项在 STARETED 和 COMPLETED 区间的状态起作用
aic_player_set_mute ​
函数原型s32 aic_player_set_mute(struct aic_player *player)
功能说明静音切换
参数定义player: player 对象
返回值0: 成功, 其他: 失败
注意事项在 STARETED 和 COMPLETED 区间的状态起作用
aic_player_set_volum ​
函数原型s32 aic_player_set_volum(struct aic_player *player, s32 vol)
功能说明设置音量
参数定义player: player 对象, vol: 音量
返回值0: 成功, 其他: 失败
注意事项在 STARETED 和 COMPLETED 区间的状态起作用
aic_player_get_volum ​
函数原型s32 aic_player_get_volum(struct aic_player *player, s32 *vol)
功能说明获取音量
参数定义player: player 对象, vol: 音量
返回值0: 成功, 其他: 失败
注意事项在 STARETED 和 COMPLETED 区间的状态起作用
aic_player_get_play_time ​
函数原型s64 aic_player_get_play_time(struct aic_player *player)
功能说明获取播放时间
参数定义player: player 对象
返回值>=0: 播放时间, <0: 获取播放时间的状态不对
注意事项在 STARETED 和 COMPLETED 区间的状态起作用
aic_player_seek ​
函数原型s32 aic_player_seek(struct aic_player *player, u64 seek_time)
功能说明跳转指定时间点
参数定义player: player 对象, seek_time: 跳转的时间点
返回值0: 成功, 其他: 失败
注意事项在 IDLE/INITIALIZED/PREPARING 状态下设置不起作用
aic_player_set_rotation ​
函数原型s32 aic_player_set_rotation(struct aic_player *player, int rotation_angle)
功能说明设置视频旋转角度
参数定义player: player 对象, rotation_angle: 旋转角度
返回值0: 成功, 其他: 失败
注意事项在 STARTED/PLAYING/PAUSED/COMPLETED 状态下设置起作用
aic_player_get_rotation ​
函数原型s32 aic_player_get_rotation(struct aic_player *player)
功能说明获取视频旋转角度
参数定义player: player 对象
返回值>=0: 旋转角度, <0: 获取失败
注意事项在 STARTED/PLAYING/PAUSED/COMPLETED 状态下可以获取

APP Demo ​

bash
#include <string.h>
#include <malloc.h>
#include <stddef.h>
#include <stdlib.h>
#include <stdlib.h>
#include <stdio.h>
#include <fcntl.h>
#include <unistd.h>
#include <sys/types.h>
#include <signal.h>
#include <pthread.h>
#include <dirent.h>
#include <inttypes.h>
#include <getopt.h>

#include "mpp_dec_type.h"
#include "mpp_list.h"
#include "mpp_log.h"
#include "mpp_mem.h"
#include "aic_message.h"
#include "aic_player.h"

#include <rthw.h>
#include <rtthread.h>
#include <shell.h>

#ifdef LPKG_USING_CPU_USAGE
#include "cpu_usage.h"
#endif

#define PLAYER_DEMO_FILE_MAX_NUM 128
#define PLAYER_DEMO_FILE_PATH_MAX_LEN 256
#define BUFFER_LEN 16

static int g_player_end = 0;
static int g_demuxer_detected_flag = 0;
static int g_sync_flag = AIC_PLAYER_PREPARE_SYNC;
static struct av_media_info g_media_info;
struct file_list {
        char *file_path[PLAYER_DEMO_FILE_MAX_NUM];
        int file_num;
};

static void print_help(const char* prog)
{
        printf("name: %s\n", prog);
        printf("Compile time: %s\n", __TIME__);
        printf("Usage: player_demo [options]:\n"
                "\t-i                             input stream file name\n"
                "\t-t                             directory of test files\n"
                "\t-l                             loop time\n"
                "\t-c                             save capture file path,default /sdcard/video/capture.jpg \n"
                "\t-W                             capture widht\n"
                "\t-H                             capture height\n"
                "\t-q                             capture quality\n"
                "\t-h                             help\n\n"
                "Example1(test single file for 1 time): player_demo -i /mnt/video/test.mp4 \n"
                "Example2(test single file for 3 times): player_demo -i /mnt/video/test.mp4 -l 3 \n"
                "Example3(test some files for 1 time ) : player_demo -t /mnt/video \n"
                "Example4(test some files for 3 times ): player_demo -t /mnt/video -l 3 \n"
                "---------------------------------------------------------------------------------------\n"
                "-------------------------------control key while playing-------------------------------\n"
                "---------------------------------------------------------------------------------------\n"
                "('d'): play next \n"
                "('u'): play previous \n"
                "('p'): pause/play \n"
                "('+'): volum+5 \n"
                "('-'): volum-5 \n"
                "('f'): forward seek +8s \n"
                "('b'): back seek -8s \n"
                "('z'): seek to begin pos \n"
                "('m':  enter/eixt mute \n"
                "('e'): eixt app \n"
}

static int read_dir(char* path, struct file_list *files)
{
        char* ptr = NULL;
        int file_path_len = 0;
        struct dirent* dir_file;
        DIR* dir = opendir(path);
        if(dir == NULL) {
                loge("read dir failed");
                return -1;
        }

        while((dir_file = readdir(dir))) {
                if(strcmp(dir_file->d_name, ".") == 0 || strcmp(dir_file->d_name, "..") == 0)
                        continue;

                ptr = strrchr(dir_file->d_name, '.');
                if(ptr == NULL)
                        continue;

                if (strcmp(ptr, ".h264") && strcmp(ptr, ".264") && strcmp(ptr, ".mp4") )
                        continue;

                logd("name: %s", dir_file->d_name);

                file_path_len = 0;
                file_path_len += strlen(path);
                file_path_len += 1 ; // '/'
                file_path_len += strlen(dir_file->d_name);
                printf("file_path_len:%d\n",file_path_len);
                if(file_path_len > PLAYER_DEMO_FILE_PATH_MAX_LEN-1){
                        loge("%s too long \n",dir_file->d_name);
                        continue ;
                }
                files->file_path[files->file_num] = (char *)mpp_alloc(file_path_len+1);
                files->file_path[files->file_num][file_path_len] = '\0';
                strcpy(files->file_path[files->file_num], path);
                strcat(files->file_path[files->file_num], "/");
                strcat(files->file_path[files->file_num], dir_file->d_name);
                logd("i: %d, filename: %s", files->file_num, files->file_path[files->file_num]);
                files->file_num ++;
                if(files->file_num >= PLAYER_DEMO_FILE_MAX_NUM)
                        break;
        }
        return 0;
}

s32 event_handle( void* app_data,s32 event,s32 data1,s32 data2)
{
        int ret = 0;
        switch(event){
                case AIC_PLAYER_EVENT_PLAY_END:
                        g_player_end = 1;
                        logd("g_player_end\n");
                        break;
                case AIC_PLAYER_EVENT_PLAY_TIME:
                        break;
                case AIC_PLAYER_EVENT_DEMUXER_FORMAT_DETECTED:
                        if(AIC_PLAYER_PREPARE_ASYNC == g_sync_flag){
                                g_demuxer_detected_flag = 1;
                                logd("AIC_PLAYER_EVENT_DEMUXER_FORMAT_DETECTED\n");
                        }
                        break;

                case AIC_PLAYER_EVENT_DEMUXER_FORMAT_NOT_DETECTED:
                        if(AIC_PLAYER_PREPARE_ASYNC == g_sync_flag){
                                logd("AIC_PLAYER_EVENT_DEMUXER_FORMAT_NOT_DETECTED\n");
                                logd("cur file format not detected,play next file!!!!!!\n");
                                g_player_end = 1;
                        }

                        break;
                default:
                        break;
        }
        return ret;
}

static int set_volume(struct aic_player *player,int volume)
{
        if(volume < 0){
                volume = 0;
        }
        else if(volume < 101){

        }
        else{
                volume = 100;
        }
        logd("volume:%d\n",volume);
        return aic_player_set_volum(player,volume);
}

static int do_seek(struct aic_player *player,int forward)
{
        s64 pos;
        pos = aic_player_get_play_time(player);
        if(pos == -1){
                loge("aic_player_get_play_time error!!!!\n");
                return -1;
        }
        if(forward == 1){
                pos += 8*1000*1000;//+8s
        }else{
                pos -= 8*1000*1000;//-8s
        }

        if(pos < 0){
                pos = 0;
        }else if(pos < g_media_info.duration){

        }else{
                pos = g_media_info.duration;
        }

        if(aic_player_seek(player,pos) != 0){
                loge("aic_player_seek error!!!!\n");
                return -1;
        }
        logd("aic_player_seek ok\n");
        return 0;
}


static int start_play(struct aic_player *player,int volume)
{
        int ret = -1;
        static struct av_media_info media_info;
        struct mpp_size screen_size;
        struct mpp_rect disp_rect;

        ret = aic_player_start(player);
        if(ret != 0){
                loge("aic_player_start error!!!!\n");
                return -1;
        }
        printf("[%s:%d]aic_player_start ok\n",__FUNCTION__,__LINE__);

        ret =  aic_player_get_media_info(player,&media_info);
        if(ret != 0){
                loge("aic_player_get_media_info error!!!!\n");
                return -1;
        }
        g_media_info = media_info;
        logd("aic_player_get_media_info duration:"FMT_x64",file_size:"FMT_x64"\n",media_info.duration,media_info.file_size);

        logd("has_audio:%d,has_video:%d,"
                "width:%d,height:%d,\n"
                "bits_per_sample:%d,nb_channel:%d,sample_rate:%d\n"
                ,media_info.has_audio
                ,media_info.has_video
                ,media_info.video_stream.width
                ,media_info.video_stream.height
                ,media_info.audio_stream.bits_per_sample
                ,media_info.audio_stream.nb_channel
                ,media_info.audio_stream.sample_rate);

        if(media_info.has_video){
                ret = aic_player_get_screen_size(player, &screen_size);
                if(ret != 0){
                        loge("aic_player_get_screen_size error!!!!\n");
                        return -1;
                }
                logd("screen_width:%d,screen_height:%d\n",screen_size.width,screen_size.height);
                disp_rect.x = 324;
                disp_rect.y = 50;
                disp_rect.width = 600;
                disp_rect.height = 500;
                ret = aic_player_set_disp_rect(player, &disp_rect);//attention:disp not exceed screen_size
                if(ret != 0){
                        loge("aic_player_set_disp_rect error\n");
                        return -1;
                }
                logd("aic_player_set_disp_rect  ok\n");
        }

        if(media_info.has_audio){
                ret = set_volume(player,volume);
                if(ret != 0){
                        loge("set_volume error!!!!\n");
                        return -1;
                }
        }

        ret = aic_player_seek(player,media_info.duration/2);
        if(ret != 0){
                loge("aic_player_seek error!!!!\n");
                return -1;
        }
        logd("aic_player_seek ok\n");

        ret = aic_player_play(player);
        if(ret != 0){
                loge("aic_player_play error!!!!\n");
                return -1;
        }
        printf("[%s:%d]aic_player_play ok\n",__FUNCTION__,__LINE__);
        return 0;
}


struct thread_trace_info{
        uint32_t enter_run_tick;
        uint32_t total_run_tick;
        char thread_name[8];
};

static struct  thread_trace_info thread_trace_infos[6];


// count the cpu usage time of each thread
static void hook_of_scheduler(struct rt_thread *from,struct rt_thread *to){
        static int show = 0;
        static uint32_t sys_tick = 0;
        int i = 0;
        for(i=0;i<6;i++){
                if(!strcmp(thread_trace_infos[i].thread_name,from->name)){
                        uint32_t run_tick;
                        run_tick = rt_tick_get() -  thread_trace_infos[i].enter_run_tick;
                        thread_trace_infos[i].total_run_tick += run_tick;
                        break;
                }
        }

        for(i=0;i<6;i++){
                if(!strcmp(thread_trace_infos[i].thread_name,to->name)){
                                thread_trace_infos[i].enter_run_tick = rt_tick_get();
                        break;
                }
        }
        show++;
        if(show > 10*1000){
                rt_kprintf("[%u:%u:%u:%u:%u:%u:%u]:%u\n"
                        ,thread_trace_infos[0].total_run_tick
                        ,thread_trace_infos[1].total_run_tick
                        ,thread_trace_infos[2].total_run_tick
                        ,thread_trace_infos[3].total_run_tick
                        ,thread_trace_infos[4].total_run_tick
                        ,thread_trace_infos[5].total_run_tick
                        ,thread_trace_infos[5].total_run_tick+thread_trace_infos[4].total_run_tick+thread_trace_infos[3].total_run_tick+thread_trace_infos[2].total_run_tick+thread_trace_infos[1].total_run_tick+thread_trace_infos[0].total_run_tick
                        ,rt_tick_get() - sys_tick);

                for(i=0;i<6;i++){
                        thread_trace_infos[i].total_run_tick = 0;
                }
                show = 0;
                sys_tick = rt_tick_get();
        }
}

static void player_demo_test(int argc, char **argv)
{
        int ret = 0;
        int i = 0;
        int j = 0;
        char ch;
        int file_path_len;
        int opt;
        int loop_time = 1;
        struct file_list  files;
        struct aic_player *player = NULL;
        int volume = 50;
        struct aic_capture_info   capture_info;
        char file_path[255] = {"/sdcard/video/capture.jpg"};
        rt_device_t dev = RT_NULL;
        // get serial dev
        dev = rt_device_find("uart0");
        //default capture_info
        capture_info.file_path = (s8 *)file_path;
        capture_info.width = 1024;
        capture_info.height = 600;
        capture_info.quality = 90;
        memset(&files,0x00,sizeof(struct file_list));

        memset(&thread_trace_infos,0x00,sizeof(struct thread_trace_info));

        for(i = 0; i < 6 ;i++){
                sprintf(thread_trace_infos[i].thread_name,"%s%02d","pth",i);
                printf("%s\n",thread_trace_infos[i].thread_name);
        }


        rt_scheduler_sethook(hook_of_scheduler);

        optind = 0;
        while (1) {
                opt = getopt(argc, argv, "i:t:l:c:W:H:q:h");
                if (opt == -1) {
                        break;
                }
                switch (opt) {
                case 'i':
                        file_path_len = strlen(optarg);
                        printf("file_path_len:%d\n",file_path_len);
                        if(file_path_len > PLAYER_DEMO_FILE_PATH_MAX_LEN-1){
                                loge("file_path_len too long \n");
                                goto _EXIT0_;
                        }
                        files.file_path[0] = (char *)mpp_alloc(file_path_len+1);
                        files.file_path[0][file_path_len] = '\0';
                        strcpy(files.file_path[0], optarg);
                        files.file_num = 1;
                        logd("file path: %s", files.file_path[0]);
                        break;
                case 'l':
                        loop_time = atoi(optarg);
                        break;
                case 't':
                        read_dir(optarg, &files);
                        break;
                case 'c':
                        memset(file_path,0x00,sizeof(file_path));
                        strncpy(file_path, optarg,sizeof(file_path)-1);
                        logd("file path: %s", file_path);
                        break;
                case 'W':
                        capture_info.width = atoi(optarg);
                        break;
                case 'H':
                        capture_info.height = atoi(optarg);
                        break;
                case 'q':
                        capture_info.quality = atoi(optarg);
                        break;
                case 'h':
                        print_help(argv[0]);
                default:
                        goto _EXIT0_;
                        break;
                }
        }

        if(files.file_num == 0) {
                print_help(argv[0]);
                loge("files.file_num ==0 !!!\n");
                goto _EXIT0_;
        }

        player = aic_player_create(NULL);
        if(player == NULL){
                loge("aic_player_create fail!!!\n");
                goto _EXIT0_;
        }

        aic_player_set_event_callback(player,player,event_handle);
        g_sync_flag = AIC_PLAYER_PREPARE_SYNC;

        for(i = 0;i < loop_time; i++){
                for(j = 0; j < files.file_num; j++){
                        aic_player_set_uri(player,files.file_path[j]);
                        if(g_sync_flag == AIC_PLAYER_PREPARE_ASYNC){
                                ret = aic_player_prepare_async(player);
                        }else{
                                ret = aic_player_prepare_sync(player);
                        }
                        if(ret){
                                loge("aic_player_prepare error!!!!\n");
                                g_player_end = 1;
                                goto _NEXT_FILE_;
                        }

                        if(g_sync_flag == AIC_PLAYER_PREPARE_SYNC){
                                if(start_play(player,volume) != 0){
                                        g_player_end = 1;
                                        goto _NEXT_FILE_;
                                }
                        }

                        while(1)
                        {
        _NEXT_FILE_:
                                if(g_player_end == 1){
                                        logd("play file:%s end!!!!\n",files.file_path[j]);
                                        ret = aic_player_stop(player);
                                        g_player_end = 0;
                                        break;
                                }
                                if(g_sync_flag == AIC_PLAYER_PREPARE_ASYNC && g_demuxer_detected_flag == 1){
                                        g_demuxer_detected_flag = 0;
                                        if(start_play(player,volume) != 0){
                                                g_player_end = 1;
                                                goto _NEXT_FILE_;
                                        }
                                }
                                if (rt_device_read(dev, -1, &ch, 1) == 1) {
                                        if(ch == 0x20){// pause
                                                logd("*********enter pause ***************\n");
                                                aic_player_pause(player);
                                        }else if(ch == 'd'){//stop cur, star next
                                                logd("*********enter down ***************\n");
                                                aic_player_stop(player);
                                                break;
                                        }else if(ch == 'u'){//stop cur, star pre
                                                logd("*********enter up j:%d***************\n",j);
                                                aic_player_stop(player);
                                                j -= 2;
                                                j = (j < -1)?(-1):(j);
                                                break;
                                        }else if(ch == '-'){
                                                logd("*********enter volume--**************\n");
                                                volume -= 5;
                                                set_volume(player,volume);
                                        }else if(ch == '+'){
                                                logd("*********enter volume++***************\n");
                                                volume += 5;
                                                set_volume(player,volume);
                                        }else if(ch == 'm'){
                                                logd("*********enter/exit mute***************\n");
                                                        aic_player_set_mute(player);
                                        }else if(ch == 'c'){
                                                logd("*********capture***************\n");
                                                if(aic_player_capture(player,&capture_info) == 0){
                                                        logd("*********aic_player_capture ok***************\n");
                                                }else{
                                                        loge("*********aic_player_capture fail ***************\n");
                                                }
                                        }else if(ch == 'f'){
                                                logd("*********forward***************\n");
                                                do_seek(player,1);//+8s
                                        }else if(ch == 'b'){
                                                logd("*********back***************\n");
                                                do_seek(player,0);//-8s
                                        }else if(ch == 'z'){//seek to start
                                                if(aic_player_seek(player,0) != 0){
                                                        loge("aic_player_seek error!!!!\n");
                                                }else{
                                                        logd("aic_player_seek ok\n");
                                                }
                                        }else if(ch == 'e') {
                                                aic_player_stop(player);
                                                goto _EXIT0_;
                                        }
                                }else{
                                #ifdef LPKG_USING_CPU_USAGE
                                {
                                        static int index = 0;
                                        char data_str[64];
                                        float value = 0.0 ;
                                        if(index++ % 10 == 0 ){
                                                value = cpu_load_average();
                                                sprintf(data_str, "%.2f%%\n", value);
                                                printf("cpu_loading:%s\n",data_str);
                                        }

                                }
                                #endif
                                        usleep(1000*1000);
                                }
                        }
                }
        }

_EXIT0_:
        if(player)
                aic_player_destroy(player);

        for(i = 0; i <files.file_num ;i++){
                if(files.file_path[i]){
                        mpp_free(files.file_path[i]);
                }
        }
        logd("player_demo exit\n");
        return ;
}

MSH_CMD_EXPORT_ALIAS(player_demo_test,player_demo, player demo      );

本页面更新于:
