05、MDIO子系统之结构体抽象

1. 针对mii management，抽象为struct mii_bus；

2. 针对phy设备，抽象为struct phy_device；

3. 针对phy设备的驱动，抽象为struct phy_driver ；

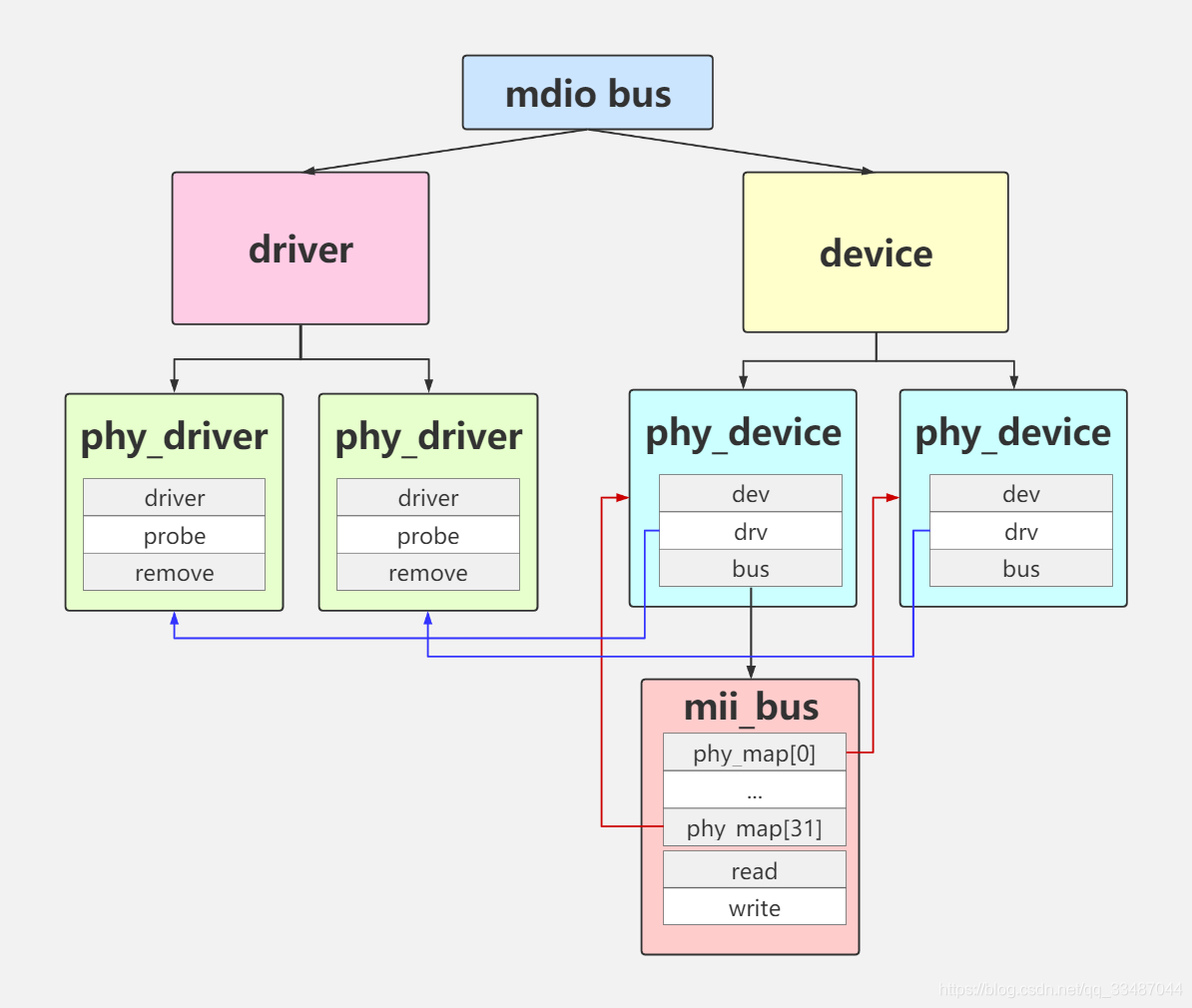

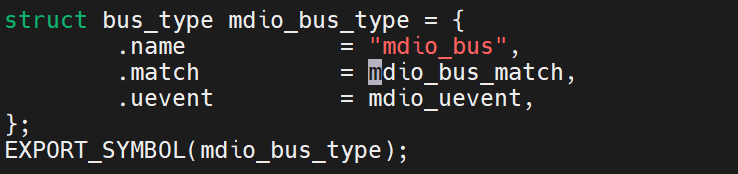

• mdio_bus为总线类型。

phy_device通过其drv指针，实现与phy_driver的关联与绑定；mii_bus借助其成员phy_map，将所有连接至该mii management的phy device关联起来。

kernel/drivers/net/phy/mdio_bus.c

一、phy_device

---

1.1、结构体

mac控制器扫描到一个device，就会创建一个phy_device（mac控制器来创建）

struct phy_device {
        struct mdio_device mdio; //设备

        /* Information about the PHY type */
        /* And management functions */
        struct phy_driver *drv;   // PHY设备驱动

        u32 phy_id;         //phy_id phy的总线地址

        struct phy_c45_device_ids c45_ids;
        unsigned is_c45:1;       //当前的协议类型（C22、C45（车载以太网））
        unsigned is_internal:1;
        unsigned is_pseudo_fixed_link:1;
        unsigned is_gigabit_capable:1;
        unsigned has_fixups:1;
        unsigned suspended:1;
        unsigned suspended_by_mdio_bus:1;
        unsigned sysfs_links:1;
        unsigned loopback_enabled:1;
        unsigned downshifted_rate:1;

        unsigned autoneg:1;       //自协商
        /* The most recently read link state */
        unsigned link:1;
        unsigned autoneg_complete:1;

        /* Interrupts are enabled */
        unsigned interrupts:1;

        enum phy_state state;

        u32 dev_flags;

        phy_interface_t interface;

        /*
         * forced speed & duplex (no autoneg)
         * partner speed & duplex & pause (autoneg)
         */
        int speed;       //速度 1000M、100、10
        int duplex;      //双工
        int port;
        int pause;
        int asym_pause;
        u8 master_slave_get;
        u8 master_slave_set;
        u8 master_slave_state;

        /* Union of PHY and Attached devices' supported link modes */
        /* See ethtool.h for more info */
        __ETHTOOL_DECLARE_LINK_MODE_MASK(supported);
        __ETHTOOL_DECLARE_LINK_MODE_MASK(advertising);
        __ETHTOOL_DECLARE_LINK_MODE_MASK(lp_advertising);
        /* used with phy_speed_down */
        __ETHTOOL_DECLARE_LINK_MODE_MASK(adv_old);

        /* Energy efficient ethernet modes which should be prohibited */
        u32 eee_broken_modes;

#ifdef CONFIG_LED_TRIGGER_PHY
        struct phy_led_trigger *phy_led_triggers;
        unsigned int phy_num_led_triggers;
        struct phy_led_trigger *last_triggered;

        struct phy_led_trigger *led_link_trigger;
#endif

        /*
         * Interrupt number for this PHY
         * -1 means no interrupt
         */
        int irq;                    //中断号

        /* private data pointer */
        /* For use by PHYs to maintain extra state */
        void *priv;                 //私有数据

        /* shared data pointer */
        /* For use by PHYs inside the same package that need a shared state. */
        struct phy_package_shared *shared;

        /* Reporting cable test results */
        struct sk_buff *skb;
        void *ehdr;
        struct nlattr *nest;

        /* Interrupt and Polling infrastructure */
        struct delayed_work state_queue;

        struct mutex lock;
        /* This may be modified under the rtnl lock */
        bool sfp_bus_attached;
        struct sfp_bus *sfp_bus;
        struct phylink *phylink;
        struct net_device *attached_dev;
        struct mii_timestamper *mii_ts;

        u8 mdix;
        u8 mdix_ctrl;

        void (*phy_link_change)(struct phy_device *phydev, bool up);
        void (*adjust_link)(struct net_device *dev);

#if IS_ENABLED(CONFIG_MACSEC)
        /* MACsec management functions */
        const struct macsec_ops *macsec_ops;
#endif
};

1.2、注册

在mac控制器驱动中probe函数会在mdio bus上面注册phy_device设备

drivers/net/ethernet/stmicro/stmmac/stmmac_mdio.c

一个 PHY 设备对应一个 phy_device 实例，然后需要向 Linux 内核注册这个实例。

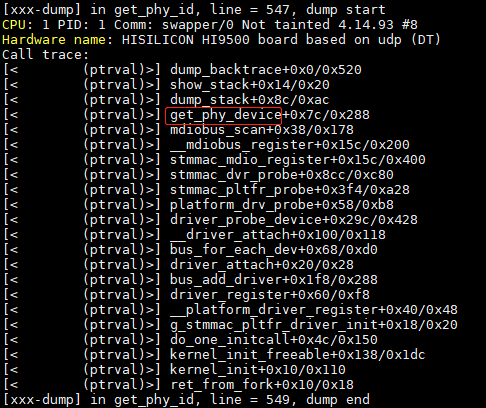

注册接口：phy_device_register（就可以在这里添加堆栈的打印dump_stack）

(到底是谁完成了phy_device 的注册)

of_mdiobus_register//注册mdio bus，并注册phy设备    of_mdio.c
    mdiobus_register//注册mdio bus
        of_mdiobus_register_phy//循环查找phy设备，注册phy设备
            get_phy_device//获取PHY设备，如果读不到PHY ID，设置为0x12345678
                phy_device_create//创建phy设备，设置phy地址、总线类型、PHY ID、自协商，更新状态机
            phy_device_register//注册phy设备

其中PHY ID的获取：

drivers/net/phy/phy_device.c

struct phy_device *get_phy_device(struct mii_bus *bus, int addr, bool is_c45)
{
        struct phy_c45_device_ids c45_ids;
        u32 phy_id = 0;
        int r;

        c45_ids.devices_in_package = 0;
        c45_ids.mmds_present = 0;
        memset(c45_ids.device_ids, 0xff, sizeof(c45_ids.device_ids));

        if (is_c45) {
                r = get_phy_c45_ids(bus, addr, &c45_ids);
        } else {
                r = get_phy_c22_id(bus, addr, &phy_id);
        }

        if (r)
                return ERR_PTR(r);
        //扫到PHY以后才会调用到这里
        return phy_device_create(bus, addr, phy_id, is_c45, &c45_ids);
}
EXPORT_SYMBOL(get_phy_device);

1. 第11行到15行 通过get phy id 来读取PHY芯片的2、3寄存器

2. phy_device_create 来 填充 phy_device

1.2.1、get_phy_c22_id （获取ID）

static int get_phy_c22_id(struct mii_bus *bus, int addr, u32 *phy_id)
{
        int phy_reg;
        unsigned int u_phy_reg;

        /* Grab the bits from PHYIR1, and put them in the upper half */
        phy_reg = mdiobus_read(bus, addr, MII_PHYSID1);
        if (phy_reg < 0) {
                /* returning -ENODEV doesn't stop bus scanning */
                return (phy_reg == -EIO || phy_reg == -ENODEV) ? -ENODEV : -EIO;
        }

        u_phy_reg = (unsigned int)phy_reg;
        *phy_id = (u_phy_reg & 0xffff) << 16;

        /* Grab the bits from PHYIR2, and put them in the lower half */
        phy_reg = mdiobus_read(bus, addr, MII_PHYSID2);
        if (phy_reg < 0) {
                /* returning -ENODEV doesn't stop bus scanning */
                return (phy_reg == -EIO || phy_reg == -ENODEV) ? -ENODEV : -EIO;
        }

        u_phy_reg = (unsigned int)phy_reg;
        *phy_id |= (u_phy_reg & 0xffff);

        /* If the phy_id is mostly Fs, there is no device there */
        if ((*phy_id & 0x1fffffff) == 0x1fffffff)
                return -ENODEV;

        return 0;
}

1.2.2、phy_device_create（设备phy_device 的结构体填充）

扫到PHY以后就会调用phy_device_create

struct phy_device *phy_device_create(struct mii_bus *bus, int addr, int phy_id,
                                     bool is_c45,
                                     struct phy_c45_device_ids *c45_ids)
{
        struct phy_device *dev;
        struct mdio_device *mdiodev;

        /* We allocate the device, and initialize the default values */
        dev = kzalloc(sizeof(*dev), GFP_KERNEL);
        if (!dev)
                return ERR_PTR(-ENOMEM);

        mdiodev = &dev->mdio;
        mdiodev->dev.parent = &bus->dev;
        mdiodev->dev.bus = &mdio_bus_type;
        mdiodev->dev.type = &mdio_bus_phy_type;
        mdiodev->bus = bus;
        mdiodev->bus_match = phy_bus_match;
        mdiodev->addr = addr;
        mdiodev->flags = MDIO_DEVICE_FLAG_PHY;
        mdiodev->device_free = phy_mdio_device_free;
        mdiodev->device_remove = phy_mdio_device_remove;

        dev->speed = SPEED_UNKNOWN;
        dev->duplex = DUPLEX_UNKNOWN;
        dev->pause = 0;
        dev->asym_pause = 0;
        dev->link = 0;
        dev->interface = PHY_INTERFACE_MODE_GMII;

        dev->autoneg = AUTONEG_ENABLE;

        dev->is_c45 = is_c45;
        dev->phy_id = phy_id;
        if (c45_ids)
                dev->c45_ids = *c45_ids;
        dev->irq = bus->irq[addr];
        dev_set_name(&mdiodev->dev, PHY_ID_FMT, bus->id, addr);

        dev->state = PHY_DOWN;

        mutex_init(&dev->lock);
        INIT_DELAYED_WORK(&dev->state_queue, phy_state_machine);
        INIT_WORK(&dev->phy_queue, phy_change_work);

        /* Request the appropriate module unconditionally; don't
         * bother trying to do so only if it isn't already loaded,
         * because that gets complicated. A hotplug event would have
         * done an unconditional modprobe anyway.
         * We don't do normal hotplug because it won't work for MDIO
         * -- because it relies on the device staying around for long
         * enough for the driver to get loaded. With MDIO, the NIC
         * driver will get bored and give up as soon as it finds that
         * there's no driver _already_ loaded.
         */
        request_module(MDIO_MODULE_PREFIX MDIO_ID_FMT, MDIO_ID_ARGS(phy_id));

        device_initialize(&mdiodev->dev);

        return dev;
}
EXPORT_SYMBOL(phy_device_create);

最后就是将phy_device 通过phy_device_register 完成注册，放到总线上面：

1.2.3、phy_device_register（最终完成设备的注册）

/**
 * phy_device_register - Register the phy device on the MDIO bus
 * @phydev: phy_device structure to be added to the MDIO bus
 */
int phy_device_register(struct phy_device *phydev)
{
        int err;

        err = mdiobus_register_device(&phydev->mdio);
        if (err)
                return err;

        /* Deassert the reset signal */
        phy_device_reset(phydev, 0);

        /* Run all of the fixups for this PHY */
        err = phy_scan_fixups(phydev);
        if (err) {
                phydev_err(phydev, "failed to initialize\n");
                goto out;
        }

        err = device_add(&phydev->mdio.dev);
        if (err) {
                phydev_err(phydev, "failed to add\n");
                goto out;
        }

        return 0;

 out:
        /* Assert the reset signal */
        phy_device_reset(phydev, 1);

        mdiobus_unregister_device(&phydev->mdio);
        return err;
}
EXPORT_SYMBOL(phy_device_register);

device_add的最终结果：

drivers/net/phy/mdio_bus.c

int mdiobus_register_device(struct mdio_device *mdiodev)
{
        int err;

        if (mdiodev->bus->mdio_map[mdiodev->addr])
                return -EBUSY;

        if (mdiodev->flags & MDIO_DEVICE_FLAG_PHY) {
                err = mdiobus_register_gpiod(mdiodev);
                if (err)
                        return err;

                err = mdiobus_register_reset(mdiodev);
                if (err)
                        return err;

                /* Assert the reset signal */
                mdio_device_reset(mdiodev, 1);
        }

        mdiodev->bus->mdio_map[mdiodev->addr] = mdiodev;

        return 0;
}
EXPORT_SYMBOL(mdiobus_register_device);

二、phy_driver

---

PHY的驱动使用phy_driver 结构体进行标识

2.1、结构体

kernel/include/linux$ vim phy.h

struct phy_driver {
    struct mdio_driver_common mdiodrv;
    u32 phy_id;                             //phy 芯片 ID
    char *name;                             //PHY 名字
    unsigned int phy_id_mask;               //phy 的 id 的标志
    u32 features;                           //phy 的特性
    u32 flags;                              //标志
    const void *driver_data;

    int (*soft_reset)(struct phy_device *phydev);
    int (*config_init)(struct phy_device *phydev);  //PHY的初始化
    int (*probe)(struct phy_device *phydev);    //

    /* PHY Power Management */
    int (*suspend)(struct phy_device *phydev);  //休眠
    int (*resume)(struct phy_device *phydev);   //唤醒

    int (*config_aneg)(struct phy_device *phydev);  //phy协商函数


    /* Determines the negotiated speed and duplex */
    int (*read_status)(struct phy_device *phydev);  //读phy状态函数

    /* Clears any pending interrupts */
    int (*ack_interrupt)(struct phy_device *phydev);

    /* Enables or disables interrupts */
    int (*config_intr)(struct phy_device *phydev);
    ......
}

2.2、注册

phy_driver_register 的参数就是 PHY 驱动的结构体，该结构体中包含了 PHY 驱动的名字、ID、配置初始化函数等信息。

drivers/net/phy/phy_device.c

/**
 * phy_driver_register - register a phy_driver with the PHY layer
 * @new_driver: new phy_driver to register
 * @owner: module owning this PHY
 */
int phy_driver_register(struct phy_driver *new_driver, struct module *owner)
{
    int retval;


    new_driver->mdiodrv.flags |= MDIO_DEVICE_IS_PHY;
    new_driver->mdiodrv.driver.name = new_driver->name;
    new_driver->mdiodrv.driver.bus = &mdio_bus_type;
    new_driver->mdiodrv.driver.probe = phy_probe;
    new_driver->mdiodrv.driver.remove = phy_remove;
    new_driver->mdiodrv.driver.owner = owner;

    retval = driver_register(&new_driver->mdiodrv.driver);
    if (retval) {
        pr_err("%s: Error %d in registering driver\n",
               new_driver->name, retval);

        return retval;
    }

    pr_debug("%s: Registered new driver\n", new_driver->name);

    return 0;
}
EXPORT_SYMBOL(phy_driver_register);

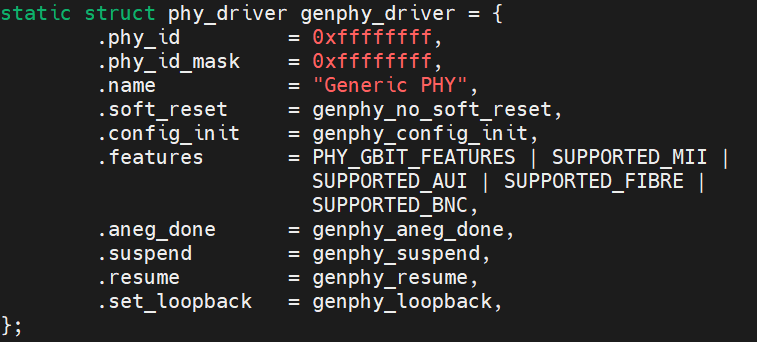

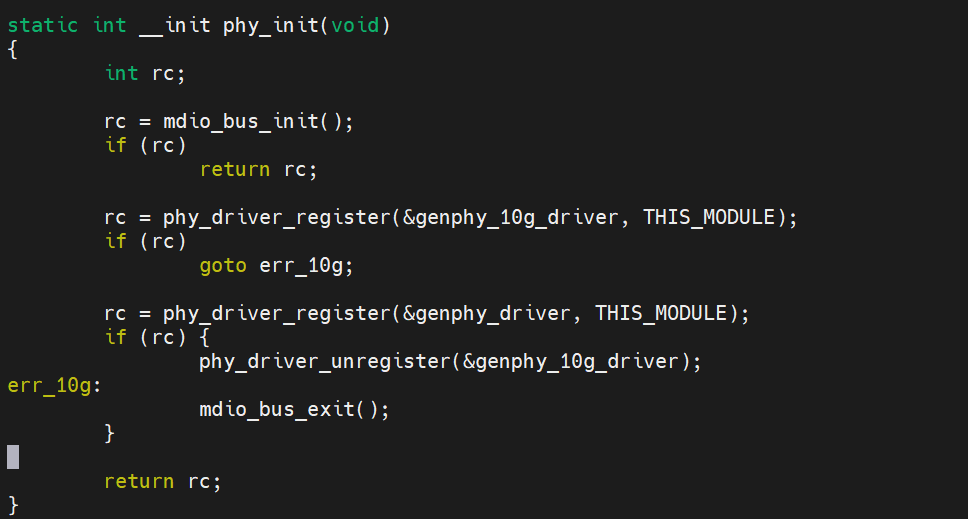

2.3、注册案例：通用驱动

目录：drivers/net$ vim phy/phy_device.c

static int phy_probe(struct device *dev)
{
        struct phy_device *phydev = to_phy_device(dev);
        struct device_driver *drv = phydev->mdio.dev.driver;
        struct phy_driver *phydrv = to_phy_driver(drv);
        int err = 0;

        phydev->drv = phydrv;

        /* Disable the interrupt if the PHY doesn't support it
         * but the interrupt is still a valid one
         */
         if (!phy_drv_supports_irq(phydrv) && phy_interrupt_is_valid(phydev))
                phydev->irq = PHY_POLL;

        if (phydrv->flags & PHY_IS_INTERNAL)
                phydev->is_internal = true;

        mutex_lock(&phydev->lock);

        /* Deassert the reset signal */
        phy_device_reset(phydev, 0);

        if (phydev->drv->probe) {
                err = phydev->drv->probe(phydev);
                if (err)
                        goto out;
        }

        /* Start out supporting everything. Eventually,
         * a controller will attach, and may modify one
         * or both of these values
         */
        if (phydrv->features) {
                linkmode_copy(phydev->supported, phydrv->features);
        } else if (phydrv->get_features) {
                err = phydrv->get_features(phydev);
        } else if (phydev->is_c45) {
                err = genphy_c45_pma_read_abilities(phydev);
        } else {
                err = genphy_read_abilities(phydev);
        }

        if (err)
                goto out;

        if (!linkmode_test_bit(ETHTOOL_LINK_MODE_Autoneg_BIT,
                               phydev->supported))
                phydev->autoneg = 0;

        if (linkmode_test_bit(ETHTOOL_LINK_MODE_1000baseT_Half_BIT,
                              phydev->supported))
                phydev->is_gigabit_capable = 1;
        if (linkmode_test_bit(ETHTOOL_LINK_MODE_1000baseT_Full_BIT,
                              phydev->supported))
                phydev->is_gigabit_capable = 1;

        of_set_phy_supported(phydev);
        phy_advertise_supported(phydev);

        /* Get the EEE modes we want to prohibit. We will ask
         * the PHY stop advertising these mode later on
         */
        of_set_phy_eee_broken(phydev);

        /* The Pause Frame bits indicate that the PHY can support passing
         * pause frames. During autonegotiation, the PHYs will determine if
         * they should allow pause frames to pass.  The MAC driver should then
         * use that result to determine whether to enable flow control via
         * pause frames.
         *
         * Normally, PHY drivers should not set the Pause bits, and instead
         * allow phylib to do that.  However, there may be some situations
         * (e.g. hardware erratum) where the driver wants to set only one
         * of these bits.
         */
        if (!test_bit(ETHTOOL_LINK_MODE_Pause_BIT, phydev->supported) &&
            !test_bit(ETHTOOL_LINK_MODE_Asym_Pause_BIT, phydev->supported)) {
                linkmode_set_bit(ETHTOOL_LINK_MODE_Pause_BIT,
                                 phydev->supported);
                linkmode_set_bit(ETHTOOL_LINK_MODE_Asym_Pause_BIT,
                                 phydev->supported);
        }

        /* Set the state to READY by default */
        phydev->state = PHY_READY;

out:
        /* Assert the reset signal */
        if (err)
                phy_device_reset(phydev, 1);

        mutex_unlock(&phydev->lock);

        return err;
}

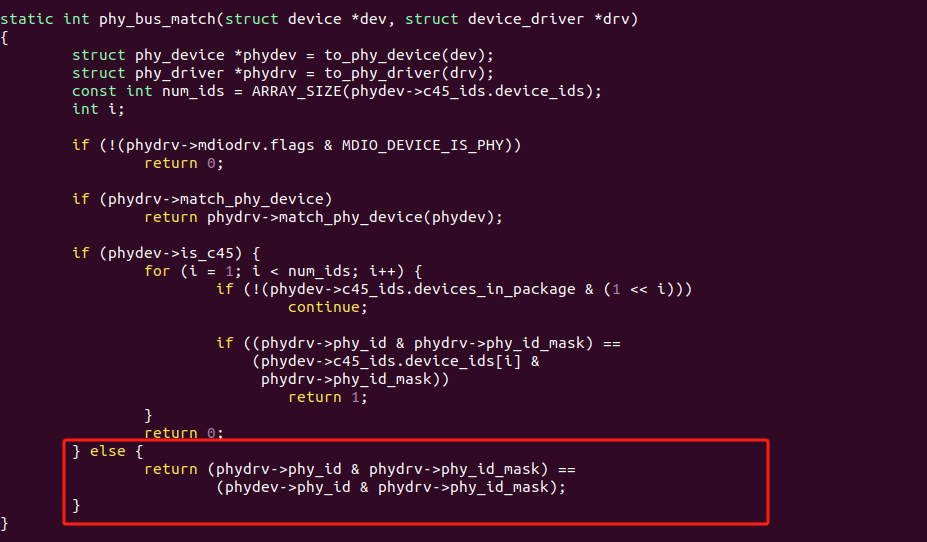

三、phy_driver 和  phy_deiver

---

net/phy/mdio_bus.c

四、probe

static int phy_probe(struct device *dev)
{
        struct phy_device *phydev = to_phy_device(dev);
        struct device_driver *drv = phydev->mdio.dev.driver;
        struct phy_driver *phydrv = to_phy_driver(drv);
        int err = 0;

        phydev->drv = phydrv;

        /* Disable the interrupt if the PHY doesn't support it
         * but the interrupt is still a valid one
         */
        if (!(phydrv->flags & PHY_HAS_INTERRUPT) &&
            phy_interrupt_is_valid(phydev))
                phydev->irq = PHY_POLL;

        if (phydrv->flags & PHY_IS_INTERNAL)
                phydev->is_internal = true;

        mutex_lock(&phydev->lock);

        /* Start out supporting everything. Eventually,
         * a controller will attach, and may modify one
         * or both of these values
         */
        phydev->supported = phydrv->features;
        of_set_phy_supported(phydev);
        phydev->advertising = phydev->supported;

        /* Get the EEE modes we want to prohibit. We will ask
         * the PHY stop advertising these mode later on
         */
        of_set_phy_eee_broken(phydev);

        /* The Pause Frame bits indicate that the PHY can support passing
         * pause frames. During autonegotiation, the PHYs will determine if
         * they should allow pause frames to pass.  The MAC driver should then
         * use that result to determine whether to enable flow control via
         * pause frames.
         *
         * Normally, PHY drivers should not set the Pause bits, and instead
         * allow phylib to do that.  However, there may be some situations
         * (e.g. hardware erratum) where the driver wants to set only one
         * of these bits.
         */
        if (phydrv->features & (SUPPORTED_Pause | SUPPORTED_Asym_Pause)) {
                phydev->supported &= ~(SUPPORTED_Pause | SUPPORTED_Asym_Pause);
                phydev->supported |= phydrv->features &
                                     (SUPPORTED_Pause | SUPPORTED_Asym_Pause);
        } else {
                phydev->supported |= SUPPORTED_Pause | SUPPORTED_Asym_Pause;
        }

        /* Set the state to READY by default */
        phydev->state = PHY_READY;

        if (phydev->drv->probe) {
                /* Deassert the reset signal */
                phy_device_reset(phydev, 0);

                err = phydev->drv->probe(phydev);
                if (err) {
                        /* Assert the reset signal */
                        phy_device_reset(phydev, 1);
                }
        }

        mutex_unlock(&phydev->lock);

        return err;
}
