彩屏驱动

本节介绍

📝本节您将学习如何使用MSPM0G3507的keil环境驱动一块1.9寸的SPI接口彩屏。

🏆本章⽬标

1️⃣明白如何配置SPI外设；

2️⃣能够使用开发板的屏幕接口点亮1.9寸彩屏；

屏幕来源

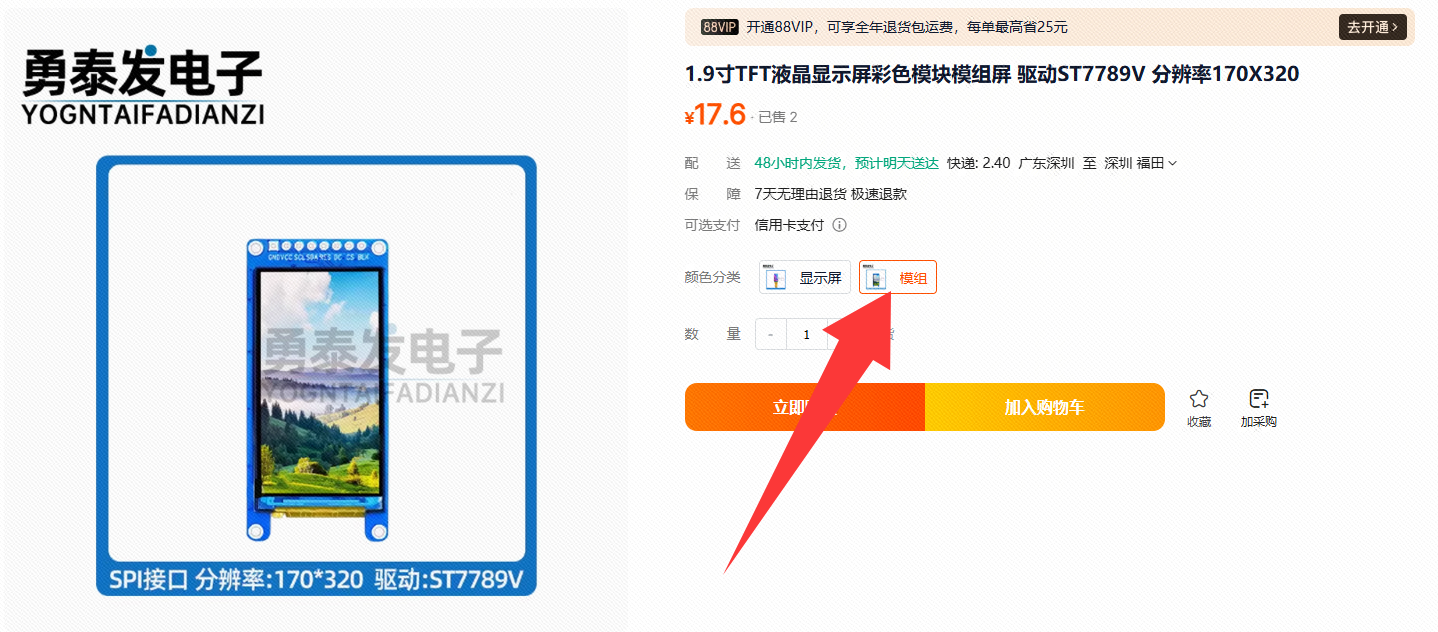

屏幕从淘宝采购。购买链接：1.9寸TFT液晶显示屏彩色模块模组屏驱动ST7789V 分辨率170X320，选择购买整个模块。

连接屏幕

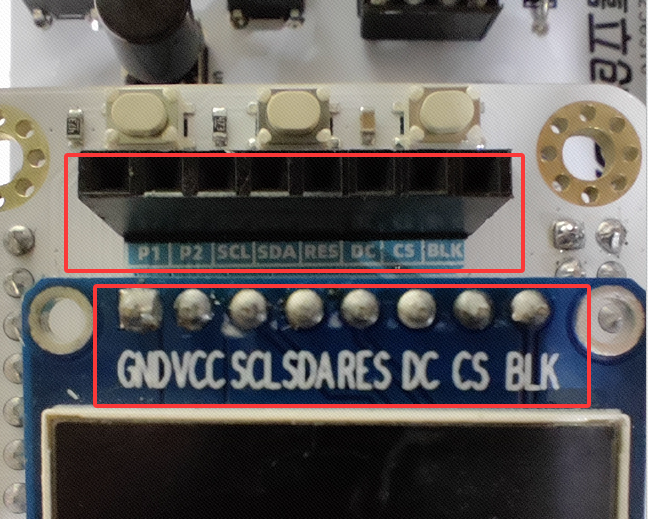

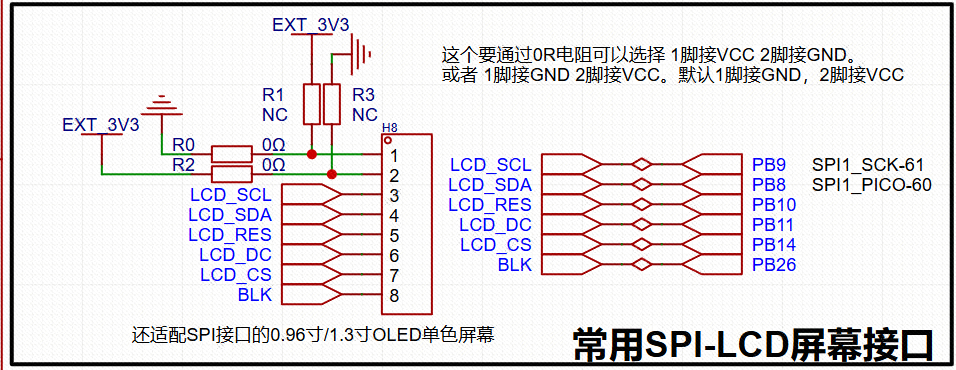

开发板上已经给大家预览了一个常用屏幕接口。是完美适配这个屏幕模块的线序的。直接插到开发板上就行。

屏幕驱动方式

通用 TFT 屏幕厂商为了降低开发难度，一般会在屏幕中内置驱动芯片，同时引出引脚与外界进行通信，常见的驱动芯片有 ST7735S、ILI9163、ST7789 等等。同时，TFT 屏幕在引出引脚方面，也分为 SPI 串口引出（四线通信）、以及 8080 并口引出（8位）等方式。

SPI总线包括四条逻辑线，定义如下：

MISO：Master Input slave output 主机输入，从机输出（数据来自从机）；
MOSI：Master output slave input 主机输出，从机输入（数据来自主机）；
SCLK：Serial Clock 串行时钟信号，由主机产生发送给从机；
NSS：Slave Select 片选信号，由主机发送，以控制与哪个从机通信，通常是低电平有效信号。

屏幕厂商一般会根据自己所用驱动芯片，写好驱动案例，大家在购买屏幕时可以找厂商要对应的资料，根据板子引脚与时序进行修改即可。

我们的屏幕就是SPI接口，使用 ST7789 驱动。其厂家给的资料地址如下：

屏幕厂家资料下载地址

https://pan.baidu.com/s/1ArmQST7I84UYY7n0aJdEBw 资料提取码：8888

适配屏幕并点亮

配置流程

一般使用TFT屏幕驱动，都需要有以下几个步骤：

配置引脚，将TFT屏幕引脚适配SPI和GPIO；
配置底层硬件代码，编写SPI发送和接收数据函数；
移植厂家驱动，适配厂商屏幕驱动函数；

配置引脚

这个屏幕是用SPI接口进行通信，但是还有其他的引脚，接下来说一下各个引脚的安排：

序号	屏幕引脚	开发板引脚	说明
1	GND	GND	电源地，不用配置，直接插到开发板上
2	VCC	3V3	电源VCC，不用配置，直接插到开发板上
3	SCL	PB9	SPI接口的SCLK功能，需要配置为硬件SPI，SPI1_SCK
4	SDA	PB8	SPI接口的MOSI功能，需要配置为硬件SPI，SPI1_PICO
5	RES	PB10	屏幕复位引脚，低电平复位，高电平正常工作。配置为GPIO即可
6	DC	PB11	确定发送给屏幕的是命令还是数据引脚，低电平是命令，高电平是数据。配置为GPIO即可
7	CS	PB14	SPI接口的NSS功能，这里我们使用GPIO控制
8	BLK	PB26	屏幕的背光控制，高电平亮，低电平灭，用GPIO控制即可

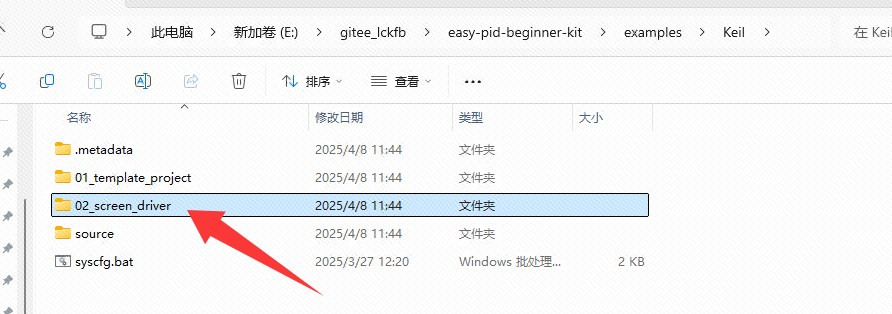

复制上一章节的工程，重新命名为 02_screen_driver。

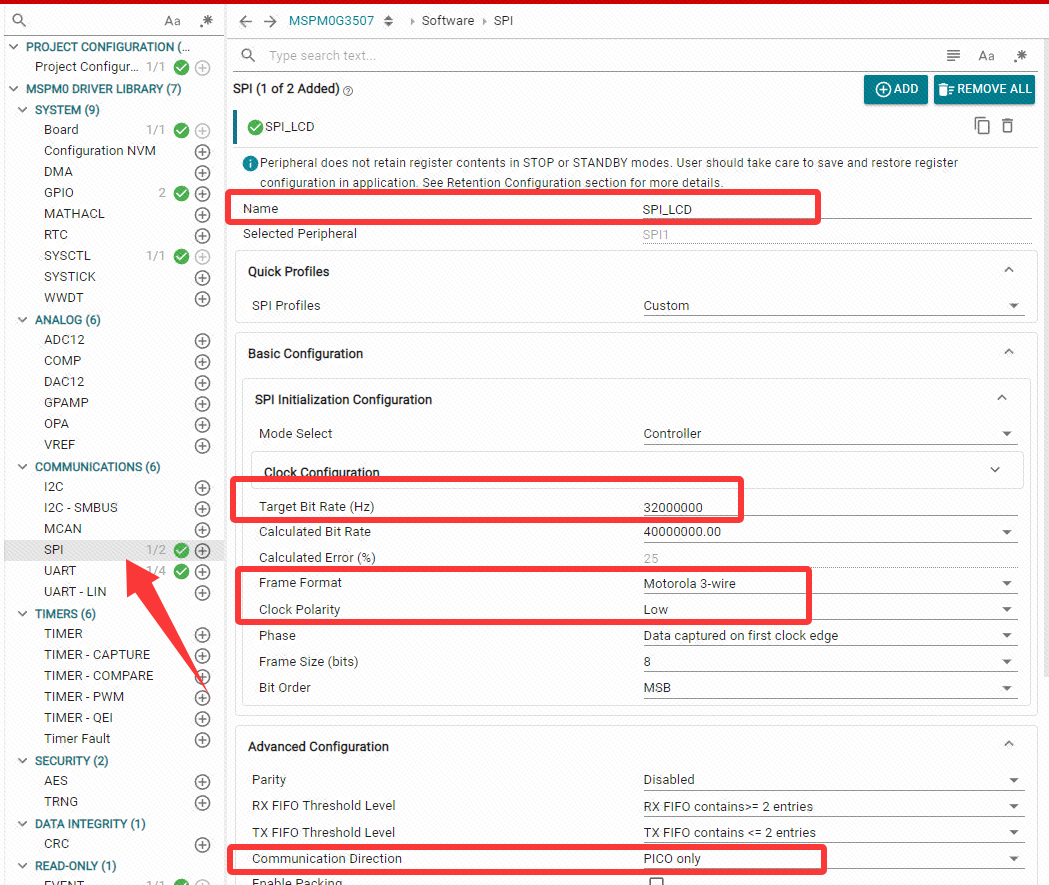

打开keil工程，并打开 .syscfg 文件，通过它打开图形化代码生成工具配置 LCD 的引脚。

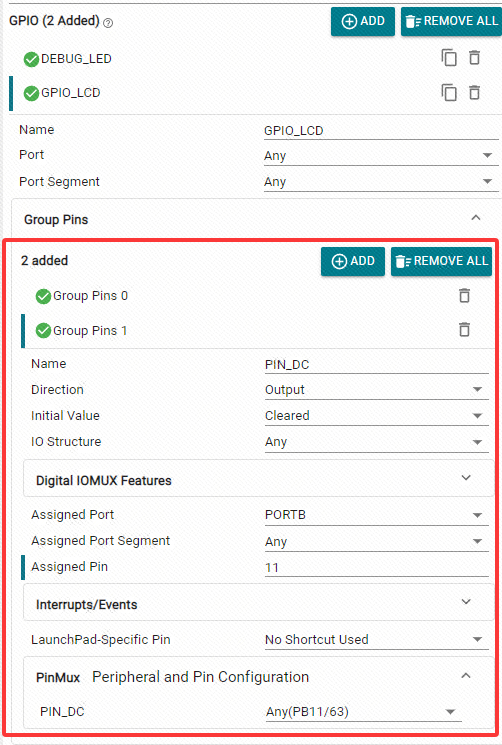

屏幕的引脚配置还剩下RES、DC、CS、BLK等引脚，这些使用普通的 GPIO 功能即可。

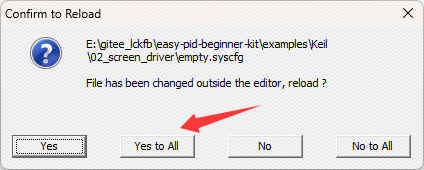

到这里引脚的配置就结束了，保存这些操作。转到 keil 中编译，让图形化代码生成工具将我们的引脚配置代码生成到我们的 keil 工程中。

编写 SPI 发送代码

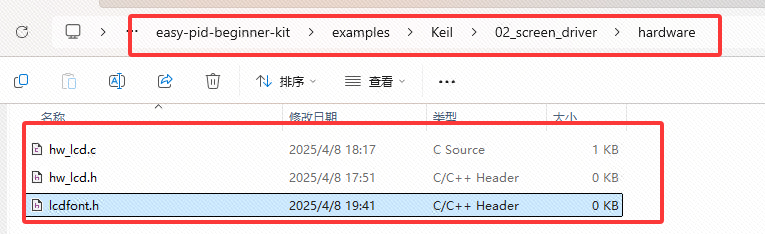

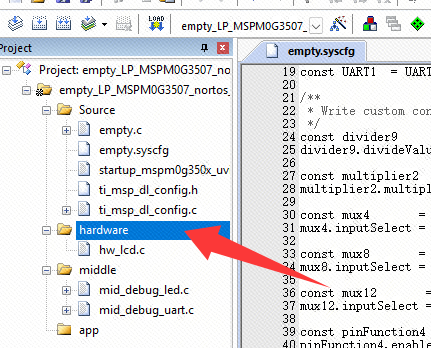

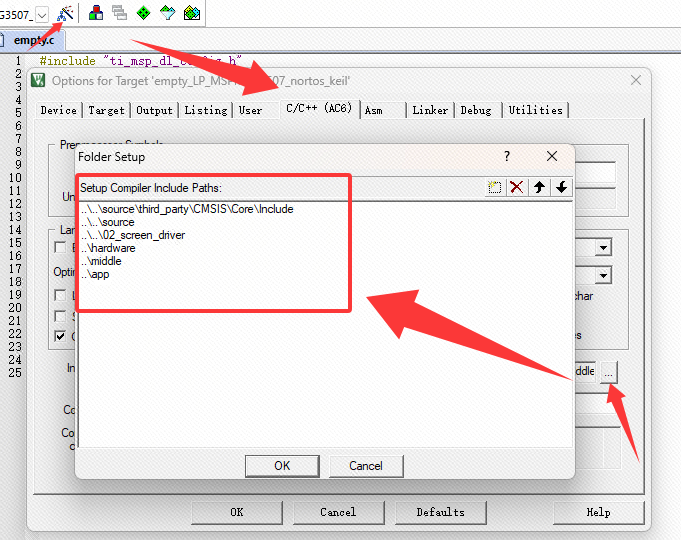

在我们工程下的 hardware 文件夹下新建三个文件：hw_lcd.c 、 hw_lcd.h 和 lcdfont.h 。新建完成后将 .c 文件添加到keil工程中。

往 hw_lcd.c 文件中添加 SPI 的底层驱动代码：

# include "hw_lcd.h"

void spi_write_bus(unsigned char dat)
{
    //发送数据
    DL_SPI_transmitData8(SPI_LCD_INST, dat);
    //等待SPI总线空闲
    while(DL_SPI_isBusy(SPI_LCD_INST));
}

移植厂家驱动

这里给大家移植好，主要修改的地方就是将厂家代码中的底层函数 LCD_Writ_Bus 修改为我们的SPI底层驱动代码。以及从厂家代码的 .h 文件中适配我们的引脚。

往 hw_lcd.c 文件更新为以下移植好的厂家的 hw_lcd.c 驱动代码，然后往 hw_lcd.h 文件添加以下 hw_lcd.h 选项的代码。新建一个 lcdfont.h 文件并且增加以下 lcdfont.h 选项的代码：

点击展开代码

hw_lcd.chw_lcd.hlcdfont.h

#include "hw_lcd.h"
#include "lcdfont.h"

#define 	delay_ms(X) 	delay_cycles( ( (CPUCLK_FREQ/1000) * (X) ) )

void spi_write_bus(unsigned char dat)
{
    //发送数据
    DL_SPI_transmitData8(SPI_LCD_INST, dat);
    //等待SPI总线空闲
    while(DL_SPI_isBusy(SPI_LCD_INST));
}

void LCD_Writ_Bus(unsigned char dat)
{
	LCD_CS_Clr();
	spi_write_bus(dat);
  LCD_CS_Set();
}
void LCD_WR_DATA8(unsigned char dat)
{
	LCD_Writ_Bus(dat);
}
void LCD_WR_DATA(unsigned int dat)
{
	LCD_Writ_Bus(dat>>8);
	LCD_Writ_Bus(dat);
}
void LCD_WR_REG(unsigned char dat)
{
	LCD_DC_Clr();//写命令
	LCD_Writ_Bus(dat);
	LCD_DC_Set();//写数据
}
void LCD_Address_Set(unsigned int x1,unsigned int y1,unsigned int x2,unsigned int y2)
{
	LCD_WR_REG(0x2a);//列地址设置
	LCD_WR_DATA(x1);
	LCD_WR_DATA(x2);
	LCD_WR_REG(0x2b);//行地址设置
	LCD_WR_DATA(y1+35);
	LCD_WR_DATA(y2+35);
	LCD_WR_REG(0x2c);//储存器写
}
void lcd_init(void)
{
	/* GPIO已在图形化工具中初始化 */

	LCD_RES_Clr();//复位
	delay_ms(30);
	LCD_RES_Set();
	delay_ms(100);
	// LCD_BLK_Set();//打开背光
	// delay_ms(100);
	LCD_WR_REG(0x11);

	LCD_WR_REG(0x36);
	LCD_WR_DATA8(0x70);

	LCD_WR_REG(0x3A);
	LCD_WR_DATA8(0x05);

	LCD_WR_REG(0xB2);
	LCD_WR_DATA8(0x0C);
	LCD_WR_DATA8(0x0C);
	LCD_WR_DATA8(0x00);
	LCD_WR_DATA8(0x33);
	LCD_WR_DATA8(0x33);

	LCD_WR_REG(0xB7);
	LCD_WR_DATA8(0x35);

	LCD_WR_REG(0xBB);
	LCD_WR_DATA8(0x1A);

	LCD_WR_REG(0xC0);
	LCD_WR_DATA8(0x2C);

	LCD_WR_REG(0xC2);
	LCD_WR_DATA8(0x01);

	LCD_WR_REG(0xC3);
	LCD_WR_DATA8(0x0B);

	LCD_WR_REG(0xC4);
	LCD_WR_DATA8(0x20);

	LCD_WR_REG(0xC6);
	LCD_WR_DATA8(0x0F);

	LCD_WR_REG(0xD0);
	LCD_WR_DATA8(0xA4);
	LCD_WR_DATA8(0xA1);

	LCD_WR_REG(0x21);
	LCD_WR_REG(0xE0);
	LCD_WR_DATA8(0xF0);
	LCD_WR_DATA8(0x00);
	LCD_WR_DATA8(0x04);
	LCD_WR_DATA8(0x04);
	LCD_WR_DATA8(0x04);
	LCD_WR_DATA8(0x05);
	LCD_WR_DATA8(0x29);
	LCD_WR_DATA8(0x33);
	LCD_WR_DATA8(0x3E);
	LCD_WR_DATA8(0x38);
	LCD_WR_DATA8(0x12);
	LCD_WR_DATA8(0x12);
	LCD_WR_DATA8(0x28);
	LCD_WR_DATA8(0x30);

	LCD_WR_REG(0xE1);
	LCD_WR_DATA8(0xF0);
	LCD_WR_DATA8(0x07);
	LCD_WR_DATA8(0x0A);
	LCD_WR_DATA8(0x0D);
	LCD_WR_DATA8(0x0B);
	LCD_WR_DATA8(0x07);
	LCD_WR_DATA8(0x28);
	LCD_WR_DATA8(0x33);
	LCD_WR_DATA8(0x3E);
	LCD_WR_DATA8(0x36);
	LCD_WR_DATA8(0x14);
	LCD_WR_DATA8(0x14);
	LCD_WR_DATA8(0x29);
	LCD_WR_DATA8(0x32);
	LCD_WR_REG(0x11);
	delay_ms(120);
	LCD_WR_REG(0x29);
}
/*******************************************************************************
 以下为基础UI部分
*******************************************************************************/

/******************************************************************************
      函数说明：在指定区域填充颜色
      入口数据：xsta,ysta   起始坐标
                xend,yend   终止坐标
								color       要填充的颜色
      返回值：  无
******************************************************************************/
void LCD_Fill(unsigned int xsta,unsigned int ysta,unsigned int xend,unsigned int yend,unsigned int color)
{
	unsigned int i,j;
	LCD_Address_Set(xsta,ysta,xend-1,yend-1);//设置显示范围
	for(i=ysta;i<yend;i++)
	{
		for(j=xsta;j<xend;j++)
		{
			LCD_WR_DATA(color);
		}
	}
}

/******************************************************************************
      函数说明：在指定位置画点
      入口数据：x,y 画点坐标
                color 点的颜色
      返回值：  无
******************************************************************************/
void LCD_DrawPoint(unsigned int x,unsigned int y,unsigned int color)
{
	LCD_Address_Set(x,y,x,y);//设置光标位置
	LCD_WR_DATA(color);
}


/******************************************************************************
      函数说明：画线
      入口数据：x1,y1   起始坐标
                x2,y2   终止坐标
                color   线的颜色
      返回值：  无
******************************************************************************/
void LCD_DrawLine(unsigned int x1,unsigned int y1,unsigned int x2,unsigned int y2,unsigned int color)
{
	unsigned int t;
	int xerr=0,yerr=0,delta_x,delta_y,distance;
	int incx,incy,uRow,uCol;
	delta_x=x2-x1; //计算坐标增量
	delta_y=y2-y1;
	uRow=x1;//画线起点坐标
	uCol=y1;
	if(delta_x>0)incx=1; //设置单步方向
	else if (delta_x==0)incx=0;//垂直线
	else {incx=-1;delta_x=-delta_x;}
	if(delta_y>0)incy=1;
	else if (delta_y==0)incy=0;//水平线
	else {incy=-1;delta_y=-delta_y;}
	if(delta_x>delta_y)distance=delta_x; //选取基本增量坐标轴
	else distance=delta_y;
	for(t=0;t<distance+1;t++)
	{
		LCD_DrawPoint(uRow,uCol,color);//画点
		xerr+=delta_x;
		yerr+=delta_y;
		if(xerr>distance)
		{
			xerr-=distance;
			uRow+=incx;
		}
		if(yerr>distance)
		{
			yerr-=distance;
			uCol+=incy;
		}
	}
}

//绘制垂直线
void LCD_DrawVerrticalLine(int x, int y1, int y2, unsigned int color)
{
	int i;
	LCD_Address_Set(x, y1, x, y1 + y2);
	for(i=y1; i <= y1 + y2; i++)
	{
		LCD_WR_DATA(color);
	}

}
/******************************************************************************
      函数说明：画矩形
      入口数据：x1,y1   起始坐标
                x2,y2   终止坐标
                color   矩形的颜色
      返回值：  无
******************************************************************************/
void LCD_DrawRectangle(unsigned int x1, unsigned int y1, unsigned int x2, unsigned int y2,unsigned int color)
{
	LCD_DrawLine(x1,y1,x2,y1,color);
	LCD_DrawLine(x1,y1,x1,y2,color);
	LCD_DrawLine(x1,y2,x2,y2,color);
	LCD_DrawLine(x2,y1,x2,y2,color);
}


/******************************************************************************
      函数说明：画圆
      入口数据：x0,y0   圆心坐标
                r       半径
                color   圆的颜色
      返回值：  无
******************************************************************************/
void Draw_Circle(unsigned int x0,unsigned int y0,unsigned char r,unsigned int color)
{
	int a,b;
	a=0;b=r;
	while(a<=b)
	{
		LCD_DrawPoint(x0-b,y0-a,color);             //3
		LCD_DrawPoint(x0+b,y0-a,color);             //0
		LCD_DrawPoint(x0-a,y0+b,color);             //1
		LCD_DrawPoint(x0-a,y0-b,color);             //2
		LCD_DrawPoint(x0+b,y0+a,color);             //4
		LCD_DrawPoint(x0+a,y0-b,color);             //5
		LCD_DrawPoint(x0+a,y0+b,color);             //6
		LCD_DrawPoint(x0-b,y0+a,color);             //7
		a++;
		if((a*a+b*b)>(r*r))//判断要画的点是否过远
		{
			b--;
		}
	}
}

void Drawarc(int x,int y,int a,int b,unsigned int r,unsigned int c)
{
    int x_tp, y_tp;
    int d; // Decision variable

    // Start with the top and bottom rows of the circle
    for (x_tp = 0; x_tp <= r; x_tp++) {
        // Calculate the corresponding y values
        y_tp = (int)sqrt(r * r - x_tp * x_tp);

        // Draw the horizontal lines from the circle edge to the center
        for (int i = x_tp; i >= -x_tp; i--) {
            LCD_DrawPoint(x + i, y - y_tp, c);
            LCD_DrawPoint(x + i, y + y_tp, c);
        }
    }

    // Now fill the rest of the circle
    d = 3 - 2 * r;
    while (x_tp > y_tp) {
        if (d < 0) {
            d += 4 * x_tp + 6;
        } else {
            d += 4 * (x_tp - y_tp) + 10;
            y_tp++;
        }
        x_tp--;

        // Draw the horizontal lines from the circle edge to the center
        for (int i = -x_tp; i <= x_tp; i++) {
            LCD_DrawPoint(x + i, y - y_tp, c);
            LCD_DrawPoint(x + i, y + y_tp, c);
        }

        // Draw the vertical lines from the circle edge to the center
        for (int i = -y_tp; i <= y_tp; i++) {
            LCD_DrawPoint(x + x_tp, y + i, c);
            LCD_DrawPoint(x - x_tp, y + i, c);
        }
    }
}

void LCD_ArcRect(unsigned int xsta,unsigned int ysta,unsigned int xend,unsigned int yend,unsigned int color)
{

	int r = 4;
	//画四条边
	LCD_DrawLine(xsta+r,ysta,xend-r,ysta,color);
	LCD_DrawLine(xsta,ysta+r,xsta,yend-r,color);
	LCD_DrawLine(xsta+r,yend,xend-r,yend,color);
	LCD_DrawLine(xend,ysta+r,xend,yend-r,color);

	//再画四个圆角
	Drawarc(xsta+r,ysta+r,90,180,r,color);//左上
	Drawarc(xend-r,ysta+r,0,90,r,color);//右上
	Drawarc(xsta+r,yend-r,180,270,r,color);//左下
	Drawarc(xend-r,yend-r,270,360,r,color);//右下

	//画五个实心矩形
	LCD_Fill(xsta+r,ysta,xend-r,ysta+r,color);//上
	LCD_Fill(xend-r,ysta+r,xend,yend-r,color);//右
	LCD_Fill(xsta+r,yend-r,xend-r,yend,color);//下
	LCD_Fill(xsta,ysta+r,xsta+r,yend-r,color);//左
	LCD_Fill(xsta+r,ysta+r,xend-r,yend-r,color);//中

}


/******************************************************************************
      函数说明：显示中英文字符串
      入口数据：x,y显示坐标
                *s 要显示的汉字串
                fc 字的颜色
                bc 字的背景色
                sizey 字号 可选 16 24 32
                mode:  0非叠加模式  1叠加模式
      返回值：  无
******************************************************************************/
void LCD_ShowChinese(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode)
{
	while(*s!=0)
	{
		if(*s >= 128)
		{
			if(sizey==12) LCD_ShowChinese12x12(x,y,s,fc,bc,sizey,mode);
			else if(sizey==16) LCD_ShowChinese16x16(x,y,s,fc,bc,sizey,mode);
			else if(sizey==24) LCD_ShowChinese24x24(x,y,s,fc,bc,sizey,mode);
			else if(sizey==32) LCD_ShowChinese32x32(x,y,s,fc,bc,sizey,mode);
			else return;
			s+=2;
			x+=sizey;
		}
		else
		{
			LCD_ShowChar(x,y,*s,fc,bc,sizey,mode);
			s+=1;
			x+=(sizey/2);
		}
	}
}

/******************************************************************************
      函数说明：显示单个12x12汉字
      入口数据：x,y显示坐标
                *s 要显示的汉字
                fc 字的颜色
                bc 字的背景色
                sizey 字号
                mode:  0非叠加模式  1叠加模式
      返回值：  无
******************************************************************************/
void LCD_ShowChinese12x12(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode)
{
	unsigned char i,j,m=0;
	unsigned int k;
	unsigned int HZnum;//汉字数目
	unsigned int TypefaceNum;//一个字符所占字节大小
	unsigned int x0=x;
	TypefaceNum=(sizey/8+((sizey%8)?1:0))*sizey;

	HZnum=sizeof(tfont12)/sizeof(typFNT_GB12);	//统计汉字数目
	for(k=0;k<HZnum;k++)
	{
		if((tfont12[k].Index[0]==*(s))&&(tfont12[k].Index[1]==*(s+1)))
		{
			LCD_Address_Set(x,y,x+sizey-1,y+sizey-1);
			for(i=0;i<TypefaceNum;i++)
			{
				for(j=0;j<8;j++)
				{
					if(!mode)//非叠加方式
					{
						if(tfont12[k].Msk[i]&(0x01<<j))LCD_WR_DATA(fc);
						else LCD_WR_DATA(bc);
						m++;
						if(m%sizey==0)
						{
							m=0;
							break;
						}
					}
					else//叠加方式
					{
						if(tfont12[k].Msk[i]&(0x01<<j))	LCD_DrawPoint(x,y,fc);//画一个点
						x++;
						if((x-x0)==sizey)
						{
							x=x0;
							y++;
							break;
						}
					}
				}
			}
		}
		continue;  //查找到对应点阵字库立即退出，防止多个汉字重复取模带来影响
	}
}

/******************************************************************************
      函数说明：显示单个16x16汉字
      入口数据：x,y显示坐标
                *s 要显示的汉字
                fc 字的颜色
                bc 字的背景色
                sizey 字号
                mode:  0非叠加模式  1叠加模式
      返回值：  无
******************************************************************************/
void LCD_ShowChinese16x16(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode)
{
	unsigned char i,j,m=0;
	unsigned int k;
	unsigned int HZnum;//汉字数目
	unsigned int TypefaceNum;//一个字符所占字节大小
	unsigned int x0=x;
  TypefaceNum=(sizey/8+((sizey%8)?1:0))*sizey;//32
	HZnum=sizeof(tfont16)/sizeof(typFNT_GB16);	//统计汉字数目
	for(k=0;k<HZnum;k++)
	{
		if ((tfont16[k].Index[0]==*(s))&&(tfont16[k].Index[1]==*(s+1)) )
		{
			LCD_Address_Set(x,y,x+sizey-1,y+sizey-1);
			for(i=0;i<TypefaceNum;i++)
			{
				for(j=0;j<8;j++)
				{
					if(!mode)//非叠加方式
					{
						if(tfont16[k].Msk[i]&(0x01<<j))LCD_WR_DATA(fc);
						else LCD_WR_DATA(bc);
						m++;
						if(m%sizey==0)
						{
							m=0;
							break;
						}
					}
					else//叠加方式
					{
						if(tfont16[k].Msk[i]&(0x01<<j))	LCD_DrawPoint(x,y,fc);//画一个点
						x++;
						if((x-x0)==sizey)
						{
							x=x0;
							y++;
							break;
						}
					}
				}
			}
		}
		continue;  //查找到对应点阵字库立即退出，防止多个汉字重复取模带来影响
	}
}


/******************************************************************************
      函数说明：显示单个24x24汉字
      入口数据：x,y显示坐标
                *s 要显示的汉字
                fc 字的颜色
                bc 字的背景色
                sizey 字号
                mode:  0非叠加模式  1叠加模式
      返回值：  无
******************************************************************************/
void LCD_ShowChinese24x24(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode)
{
	unsigned char i,j,m=0;
	unsigned int k;
	unsigned int HZnum;//汉字数目
	unsigned int TypefaceNum;//一个字符所占字节大小
	unsigned int x0=x;
	TypefaceNum=(sizey/8+((sizey%8)?1:0))*sizey;
	HZnum=sizeof(tfont24)/sizeof(typFNT_GB24);	//统计汉字数目
	for(k=0;k<HZnum;k++)
	{
		if ((tfont24[k].Index[0]==*(s))&&(tfont24[k].Index[1]==*(s+1)))
		{
			LCD_Address_Set(x,y,x+sizey-1,y+sizey-1);
			for(i=0;i<TypefaceNum;i++)
			{
				for(j=0;j<8;j++)
				{
					if(!mode)//非叠加方式
					{
						if(tfont24[k].Msk[i]&(0x01<<j))LCD_WR_DATA(fc);
						else LCD_WR_DATA(bc);
						m++;
						if(m%sizey==0)
						{
							m=0;
							break;
						}
					}
					else//叠加方式
					{
						if(tfont24[k].Msk[i]&(0x01<<j))	LCD_DrawPoint(x,y,fc);//画一个点
						x++;
						if((x-x0)==sizey)
						{
							x=x0;
							y++;
							break;
						}
					}
				}
			}
		}
		continue;  //查找到对应点阵字库立即退出，防止多个汉字重复取模带来影响
	}
}

/******************************************************************************
      函数说明：显示单个32x32汉字
      入口数据：x,y显示坐标
                *s 要显示的汉字
                fc 字的颜色
                bc 字的背景色
                sizey 字号
                mode:  0非叠加模式  1叠加模式
      返回值：  无
******************************************************************************/
void LCD_ShowChinese32x32(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode)
{
	unsigned char i,j,m=0;
	unsigned int k;
	unsigned int HZnum;//汉字数目
	unsigned int TypefaceNum;//一个字符所占字节大小
	unsigned int x0=x;
	TypefaceNum=(sizey/8+((sizey%8)?1:0))*sizey;
	HZnum=sizeof(tfont32)/sizeof(typFNT_GB32);	//统计汉字数目
	for(k=0;k<HZnum;k++)
	{
		if ((tfont32[k].Index[0]==*(s))&&(tfont32[k].Index[1]==*(s+1)))
		{
			LCD_Address_Set(x,y,x+sizey-1,y+sizey-1);
			for(i=0;i<TypefaceNum;i++)
			{
				for(j=0;j<8;j++)
				{
					if(!mode)//非叠加方式
					{
						if(tfont32[k].Msk[i]&(0x01<<j))LCD_WR_DATA(fc);
						else LCD_WR_DATA(bc);
						m++;
						if(m%sizey==0)
						{
							m=0;
							break;
						}
					}
					else//叠加方式
					{
						if(tfont32[k].Msk[i]&(0x01<<j))	LCD_DrawPoint(x,y,fc);//画一个点
						x++;
						if((x-x0)==sizey)
						{
							x=x0;
							y++;
							break;
						}
					}
				}
			}
		}
		continue;  //查找到对应点阵字库立即退出，防止多个汉字重复取模带来影响
	}
}


/******************************************************************************
      函数说明：显示单个字符
      入口数据：x,y显示坐标
                num 要显示的字符
                fc 字的颜色
                bc 字的背景色
                sizey 字号
                mode:  0非叠加模式  1叠加模式
      返回值：  无
******************************************************************************/
void LCD_ShowChar(unsigned int x,unsigned int y,unsigned char num,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode)
{
	unsigned char temp,sizex,t,m=0;
	unsigned int i,TypefaceNum;//一个字符所占字节大小
	unsigned int x0=x;
	sizex=sizey/2;
	TypefaceNum=(sizex/8+((sizex%8)?1:0))*sizey;
	num=num-' ';    //得到偏移后的值
	LCD_Address_Set(x,y,x+sizex-1,y+sizey-1);  //设置光标位置
	for(i=0;i<TypefaceNum;i++)
	{
		if(sizey==12)temp=ascii_1206[num][i];		       //调用6x12字体
		else if(sizey==16)temp=ascii_1608[num][i];		 //调用8x16字体
		else if(sizey==24)temp=ascii_2412[num][i];		 //调用12x24字体
		else if(sizey==32)temp=ascii_3216[num][i];		 //调用16x32字体
		else return;
		for(t=0;t<8;t++)
		{
			if(!mode)//非叠加模式
			{
				if(temp&(0x01<<t))LCD_WR_DATA(fc);
				else LCD_WR_DATA(bc);
				m++;
				if(m%sizex==0)
				{
					m=0;
					break;
				}
			}
			else//叠加模式
			{
				if(temp&(0x01<<t))LCD_DrawPoint(x,y,fc);//画一个点
				x++;
				if((x-x0)==sizex)
				{
					x=x0;
					y++;
					break;
				}
			}
		}
	}
}


/******************************************************************************
      函数说明：显示字符串
      入口数据：x,y显示坐标
                *p 要显示的字符串
                fc 字的颜色
                bc 字的背景色
                sizey 字号
                mode:  0非叠加模式  1叠加模式
      返回值：  无
******************************************************************************/
void LCD_ShowString(unsigned int x,unsigned int y,const unsigned char *p,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode)
{
	while(*p!='\0')
	{
		LCD_ShowChar(x,y,*p,fc,bc,sizey,mode);
		x+=sizey/2;
		p++;
	}
}


/******************************************************************************
      函数说明：显示数字
      入口数据：m底数，n指数
      返回值：  无
******************************************************************************/
unsigned int mypow(unsigned char m,unsigned char n)
{
	unsigned int result=1;
	while(n--)result*=m;
	return result;
}


/******************************************************************************
      函数说明：显示整数变量
      入口数据：x,y显示坐标
                num 要显示整数变量
                len 要显示的位数
                fc 字的颜色
                bc 字的背景色
                sizey 字号
      返回值：  无
******************************************************************************/
void LCD_ShowIntNum(unsigned int x,unsigned int y,unsigned int num,unsigned char len,unsigned int fc,unsigned int bc,unsigned char sizey)
{
	unsigned char t,temp;
	unsigned char enshow=0;
	unsigned char sizex=sizey/2;
	for(t=0;t<len;t++)
	{
		temp=(num/mypow(10,len-t-1))%10;
		if(enshow==0&&t<(len-1))
		{
			if(temp==0)
			{
				LCD_ShowChar(x+t*sizex,y,' ',fc,bc,sizey,0);
				continue;
			}else enshow=1;

		}
	 	LCD_ShowChar(x+t*sizex,y,temp+48,fc,bc,sizey,0);
	}
}


/******************************************************************************
      函数说明：显示两位小数变量
      入口数据：x,y显示坐标
                num 要显示小数变量
                len 要显示的位数
                fc 字的颜色
                bc 字的背景色
                sizey 字号
      返回值：  无
******************************************************************************/
void LCD_ShowFloatNum1(unsigned int x,unsigned int y,float num,unsigned char len,unsigned int fc,unsigned int bc,unsigned char sizey)
{
	unsigned char t,temp,sizex;
	unsigned int num1;
	sizex=sizey/2;
	num1=num*100;
	for(t=0;t<len;t++)
	{
		temp=(num1/mypow(10,len-t-1))%10;
		if(t==(len-2))
		{
			LCD_ShowChar(x+(len-2)*sizex,y,'.',fc,bc,sizey,0);
			t++;
			len+=1;
		}
	 	LCD_ShowChar(x+t*sizex,y,temp+48,fc,bc,sizey,0);
	}
}


/******************************************************************************
      函数说明：显示图片
      入口数据：x,y起点坐标
                length 图片长度
                width  图片宽度
                pic[]  图片数组
      返回值：  无
******************************************************************************/
void LCD_ShowPicture(unsigned int x,unsigned int y,unsigned int length,unsigned int width,const unsigned char pic[])
{
	unsigned int i,j;
	uint32_t k=0;
	LCD_Address_Set(x,y,x+length-1,y+width-1);
	for(i=0;i<length;i++)
	{
		for(j=0;j<width;j++)
		{
			LCD_WR_DATA8(pic[k*2]);
			LCD_WR_DATA8(pic[k*2+1]);
			k++;
		}
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771

#ifndef __HW_LCD_H
#define __HW_LCD_H

#include "ti_msp_dl_config.h"

#define LCD_W 320
#define LCD_H 170

#define screen_center_x (LCD_W/2)//屏幕中心X = 屏幕x/2
#define screen_center_y (LCD_H/2)//屏幕中心Y = 屏幕y/2

//-----------------LCD端口定义----------------

#define LCD_RES_Clr()  DL_GPIO_clearPins(GPIO_LCD_PORT,GPIO_LCD_PIN_RES_PIN)//RES
#define LCD_RES_Set()  DL_GPIO_setPins(GPIO_LCD_PORT,GPIO_LCD_PIN_RES_PIN)

#define LCD_DC_Clr()   DL_GPIO_clearPins(GPIO_LCD_PORT,GPIO_LCD_PIN_DC_PIN)//DC
#define LCD_DC_Set()   DL_GPIO_setPins(GPIO_LCD_PORT,GPIO_LCD_PIN_DC_PIN)

#define LCD_CS_Clr()   DL_GPIO_clearPins(GPIO_LCD_PORT,GPIO_LCD_PIN_CS_PIN)//CS
#define LCD_CS_Set()   DL_GPIO_setPins(GPIO_LCD_PORT,GPIO_LCD_PIN_CS_PIN)

#define LCD_BLK_Clr()  DL_GPIO_clearPins(GPIO_LCD_PORT,GPIO_LCD_PIN_BLK_PIN)//BLK
#define LCD_BLK_Set()  DL_GPIO_setPins(GPIO_LCD_PORT,GPIO_LCD_PIN_BLK_PIN)

void LCD_WR_DATA(unsigned int dat);
void lcd_init(void);
void LCD_Address_Set(unsigned int x1,unsigned int y1,unsigned int x2,unsigned int y2);
void LCD_Fill(unsigned int xsta,unsigned int ysta,unsigned int xend,unsigned int yend,unsigned int color);//指定区域填充颜色
void LCD_DrawPoint(unsigned int x,unsigned int y,unsigned int color);//在指定位置画一个点
void LCD_DrawLine(unsigned int x1,unsigned int y1,unsigned int x2,unsigned int y2,unsigned int color);//在指定位置画一条线
void LCD_DrawRectangle(unsigned int x1, unsigned int y1, unsigned int x2, unsigned int y2,unsigned int color);//在指定位置画一个矩形
void Draw_Circle(unsigned int x0,unsigned int y0,unsigned char r,unsigned int color);//在指定位置画一个圆

void LCD_ShowChinese(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode);//显示汉字串
void LCD_ShowChinese12x12(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode);//显示单个12x12汉字
void LCD_ShowChinese16x16(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode);//显示单个16x16汉字
void LCD_ShowChinese24x24(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode);//显示单个24x24汉字
void LCD_ShowChinese32x32(unsigned int x,unsigned int y,unsigned char *s,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode);//显示单个32x32汉字

void LCD_ShowChar(unsigned int x,unsigned int y,unsigned char num,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode);//显示一个字符
void LCD_ShowString(unsigned int x,unsigned int y,const unsigned char *p,unsigned int fc,unsigned int bc,unsigned char sizey,unsigned char mode);//显示字符串
unsigned int mypow(unsigned char m,unsigned char n);//求幂
void LCD_ShowIntNum(unsigned int x,unsigned int y,unsigned int num,unsigned char len,unsigned int fc,unsigned int bc,unsigned char sizey);//显示整数变量
void LCD_ShowFloatNum1(unsigned int x,unsigned int y,float num,unsigned char len,unsigned int fc,unsigned int bc,unsigned char sizey);//显示两位小数变量

void LCD_ShowPicture(unsigned int x,unsigned int y,unsigned int length,unsigned int width,const unsigned char pic[]);//显示图片

void LCD_ArcRect(unsigned int xsta,unsigned int ysta,unsigned int xend,unsigned int yend,unsigned int color);//画圆角矩形
void LCD_DrawVerrticalLine(int x, int y1, int y2, unsigned int color);
//画笔颜色
#define WHITE         	 0xFFFF
#define BLACK         	 0x0000
#define BLUE           	 0x001F
#define BRED             0XF81F
#define GRED 			 0XFFE0
#define GBLUE			 0X07FF
#define RED           	 0xF800
#define MAGENTA       	 0xF81F
#define GREEN         	 0x07E0
#define CYAN          	 0x7FFF
#define YELLOW        	 0xFFE0
#define BROWN 			 0XBC40 //棕色
#define BRRED 			 0XFC07 //棕红色
#define GRAY  			 0X8430 //灰色
#define DARKBLUE      	 0X01CF	//深蓝色
#define LIGHTBLUE      	 0X7D7C	//浅蓝色
#define GRAYBLUE       	 0X5458 //灰蓝色
#define LIGHTGREEN     	 0X841F //浅绿色
#define LGRAY 			 0XC618 //浅灰色(PANNEL),窗体背景色
#define LGRAYBLUE        0XA651 //浅灰蓝色(中间层颜色)
#define LBBLUE           0X2B12 //浅棕蓝色(选择条目的反色)

#endif

#ifndef __LCDFONT_H
#define __LCDFONT_H

const unsigned char ascii_1206[][12]={

{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x04,0x00,0x00},/*"!",1*/
{0x14,0x14,0x0A,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x0A,0x0A,0x1F,0x0A,0x0A,0x1F,0x0A,0x0A,0x00,0x00},/*"#",3*/
{0x00,0x04,0x0E,0x15,0x05,0x06,0x0C,0x14,0x15,0x0E,0x04,0x00},/*"$",4*/
{0x00,0x00,0x12,0x15,0x0D,0x15,0x2E,0x2C,0x2A,0x12,0x00,0x00},/*"%",5*/
{0x00,0x00,0x04,0x0A,0x0A,0x36,0x15,0x15,0x29,0x16,0x00,0x00},/*"&",6*/
{0x02,0x02,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x10,0x08,0x08,0x04,0x04,0x04,0x04,0x04,0x08,0x08,0x10,0x00},/*"(",8*/
{0x02,0x04,0x04,0x08,0x08,0x08,0x08,0x08,0x04,0x04,0x02,0x00},/*")",9*/
{0x00,0x00,0x00,0x04,0x15,0x0E,0x0E,0x15,0x04,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x08,0x08,0x3E,0x08,0x08,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x02,0x01,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00},/*".",14*/
{0x00,0x20,0x10,0x10,0x08,0x08,0x04,0x04,0x02,0x02,0x01,0x00},/*"/",15*/
{0x00,0x00,0x0E,0x11,0x11,0x11,0x11,0x11,0x11,0x0E,0x00,0x00},/*"0",16*/
{0x00,0x00,0x04,0x06,0x04,0x04,0x04,0x04,0x04,0x0E,0x00,0x00},/*"1",17*/
{0x00,0x00,0x0E,0x11,0x11,0x08,0x04,0x02,0x01,0x1F,0x00,0x00},/*"2",18*/
{0x00,0x00,0x0E,0x11,0x10,0x0C,0x10,0x10,0x11,0x0E,0x00,0x00},/*"3",19*/
{0x00,0x00,0x08,0x0C,0x0C,0x0A,0x09,0x1F,0x08,0x1C,0x00,0x00},/*"4",20*/
{0x00,0x00,0x1F,0x01,0x01,0x0F,0x11,0x10,0x11,0x0E,0x00,0x00},/*"5",21*/
{0x00,0x00,0x0C,0x12,0x01,0x0D,0x13,0x11,0x11,0x0E,0x00,0x00},/*"6",22*/
{0x00,0x00,0x1E,0x10,0x08,0x08,0x04,0x04,0x04,0x04,0x00,0x00},/*"7",23*/
{0x00,0x00,0x0E,0x11,0x11,0x0E,0x11,0x11,0x11,0x0E,0x00,0x00},/*"8",24*/
{0x00,0x00,0x0E,0x11,0x11,0x19,0x16,0x10,0x09,0x06,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x00,0x04,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x04,0x04,0x00},/*";",27*/
{0x00,0x00,0x10,0x08,0x04,0x02,0x02,0x04,0x08,0x10,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x3F,0x00,0x3F,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x02,0x04,0x08,0x10,0x10,0x08,0x04,0x02,0x00,0x00},/*">",30*/
{0x00,0x00,0x0E,0x11,0x11,0x08,0x04,0x04,0x00,0x04,0x00,0x00},/*"?",31*/
{0x00,0x00,0x1C,0x22,0x29,0x2D,0x2D,0x1D,0x22,0x1C,0x00,0x00},/*"@",32*/
{0x00,0x00,0x04,0x04,0x0C,0x0A,0x0A,0x1E,0x12,0x33,0x00,0x00},/*"A",33*/
{0x00,0x00,0x0F,0x12,0x12,0x0E,0x12,0x12,0x12,0x0F,0x00,0x00},/*"B",34*/
{0x00,0x00,0x1E,0x11,0x01,0x01,0x01,0x01,0x11,0x0E,0x00,0x00},/*"C",35*/
{0x00,0x00,0x0F,0x12,0x12,0x12,0x12,0x12,0x12,0x0F,0x00,0x00},/*"D",36*/
{0x00,0x00,0x1F,0x12,0x0A,0x0E,0x0A,0x02,0x12,0x1F,0x00,0x00},/*"E",37*/
{0x00,0x00,0x1F,0x12,0x0A,0x0E,0x0A,0x02,0x02,0x07,0x00,0x00},/*"F",38*/
{0x00,0x00,0x1C,0x12,0x01,0x01,0x39,0x11,0x12,0x0C,0x00,0x00},/*"G",39*/
{0x00,0x00,0x33,0x12,0x12,0x1E,0x12,0x12,0x12,0x33,0x00,0x00},/*"H",40*/
{0x00,0x00,0x1F,0x04,0x04,0x04,0x04,0x04,0x04,0x1F,0x00,0x00},/*"I",41*/
{0x00,0x00,0x3E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x09,0x07},/*"J",42*/
{0x00,0x00,0x37,0x12,0x0A,0x06,0x0A,0x12,0x12,0x37,0x00,0x00},/*"K",43*/
{0x00,0x00,0x07,0x02,0x02,0x02,0x02,0x02,0x22,0x3F,0x00,0x00},/*"L",44*/
{0x00,0x00,0x3B,0x1B,0x1B,0x1B,0x15,0x15,0x15,0x35,0x00,0x00},/*"M",45*/
{0x00,0x00,0x3B,0x12,0x16,0x16,0x1A,0x1A,0x12,0x17,0x00,0x00},/*"N",46*/
{0x00,0x00,0x0E,0x11,0x11,0x11,0x11,0x11,0x11,0x0E,0x00,0x00},/*"O",47*/
{0x00,0x00,0x0F,0x12,0x12,0x0E,0x02,0x02,0x02,0x07,0x00,0x00},/*"P",48*/
{0x00,0x00,0x0E,0x11,0x11,0x11,0x11,0x17,0x19,0x0E,0x18,0x00},/*"Q",49*/
{0x00,0x00,0x0F,0x12,0x12,0x0E,0x0A,0x12,0x12,0x37,0x00,0x00},/*"R",50*/
{0x00,0x00,0x1E,0x11,0x01,0x06,0x08,0x10,0x11,0x0F,0x00,0x00},/*"S",51*/
{0x00,0x00,0x1F,0x15,0x04,0x04,0x04,0x04,0x04,0x0E,0x00,0x00},/*"T",52*/
{0x00,0x00,0x33,0x12,0x12,0x12,0x12,0x12,0x12,0x0C,0x00,0x00},/*"U",53*/
{0x00,0x00,0x33,0x12,0x12,0x0A,0x0A,0x0C,0x04,0x04,0x00,0x00},/*"V",54*/
{0x00,0x00,0x15,0x15,0x15,0x15,0x0E,0x0A,0x0A,0x0A,0x00,0x00},/*"W",55*/
{0x00,0x00,0x1B,0x0A,0x0A,0x04,0x04,0x0A,0x0A,0x1B,0x00,0x00},/*"X",56*/
{0x00,0x00,0x1B,0x0A,0x0A,0x0A,0x04,0x04,0x04,0x0E,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x1F,0x09,0x08,0x04,0x04,0x02,0x12,0x1F,0x00,0x00},/*"Z",58*/
{0x1C,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x1C,0x00},/*"[",59*/
{0x00,0x02,0x02,0x04,0x04,0x04,0x08,0x08,0x08,0x10,0x10,0x00},/*"\",60*/
{0x0E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x0E,0x00},/*"]",61*/
{0x04,0x0A,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F},/*"_",63*/
{0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x0C,0x12,0x1C,0x12,0x3C,0x00,0x00},/*"a",65*/
{0x00,0x03,0x02,0x02,0x02,0x0E,0x12,0x12,0x12,0x0E,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x1C,0x12,0x02,0x12,0x0C,0x00,0x00},/*"c",67*/
{0x00,0x18,0x10,0x10,0x10,0x1C,0x12,0x12,0x12,0x3C,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x0C,0x12,0x1E,0x02,0x1C,0x00,0x00},/*"e",69*/
{0x00,0x18,0x24,0x04,0x04,0x1E,0x04,0x04,0x04,0x1E,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x3C,0x12,0x0C,0x02,0x1C,0x22,0x1C},/*"g",71*/
{0x00,0x03,0x02,0x02,0x02,0x0E,0x12,0x12,0x12,0x37,0x00,0x00},/*"h",72*/
{0x00,0x04,0x04,0x00,0x00,0x06,0x04,0x04,0x04,0x0E,0x00,0x00},/*"i",73*/
{0x00,0x08,0x08,0x00,0x00,0x0C,0x08,0x08,0x08,0x08,0x08,0x07},/*"j",74*/
{0x00,0x03,0x02,0x02,0x02,0x1A,0x0A,0x06,0x0A,0x13,0x00,0x00},/*"k",75*/
{0x00,0x07,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x1F,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x0F,0x15,0x15,0x15,0x15,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x0F,0x12,0x12,0x12,0x37,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x0C,0x12,0x12,0x12,0x0C,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x0F,0x12,0x12,0x12,0x0E,0x02,0x07},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x1C,0x12,0x12,0x12,0x1C,0x10,0x38},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x1B,0x06,0x02,0x02,0x07,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x1E,0x02,0x0C,0x10,0x1E,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x04,0x04,0x1E,0x04,0x04,0x04,0x1C,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x1B,0x12,0x12,0x12,0x3C,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x1B,0x0A,0x0A,0x04,0x04,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x15,0x15,0x0E,0x0A,0x0A,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x1B,0x0A,0x04,0x0A,0x1B,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x33,0x12,0x12,0x0C,0x08,0x04,0x03},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x1E,0x08,0x04,0x04,0x1E,0x00,0x00},/*"z",90*/
{0x18,0x08,0x08,0x08,0x08,0x0C,0x08,0x08,0x08,0x08,0x18,0x00},/*"{",91*/
{0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08},/*"|",92*/
{0x06,0x04,0x04,0x04,0x04,0x08,0x04,0x04,0x04,0x04,0x06,0x00},/*"}",93*/
{0x16,0x09,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};

const unsigned char ascii_1608[][16]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,0x18,0x18,0x00,0x00},/*"!",1*/
{0x00,0x48,0x6C,0x24,0x12,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0x24,0x24,0x24,0x7F,0x12,0x12,0x12,0x7F,0x12,0x12,0x12,0x00,0x00},/*"#",3*/
{0x00,0x00,0x08,0x1C,0x2A,0x2A,0x0A,0x0C,0x18,0x28,0x28,0x2A,0x2A,0x1C,0x08,0x08},/*"$",4*/
{0x00,0x00,0x00,0x22,0x25,0x15,0x15,0x15,0x2A,0x58,0x54,0x54,0x54,0x22,0x00,0x00},/*"%",5*/
{0x00,0x00,0x00,0x0C,0x12,0x12,0x12,0x0A,0x76,0x25,0x29,0x11,0x91,0x6E,0x00,0x00},/*"&",6*/
{0x00,0x06,0x06,0x04,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x40,0x20,0x10,0x10,0x08,0x08,0x08,0x08,0x08,0x08,0x10,0x10,0x20,0x40,0x00},/*"(",8*/
{0x00,0x02,0x04,0x08,0x08,0x10,0x10,0x10,0x10,0x10,0x10,0x08,0x08,0x04,0x02,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x08,0x08,0x6B,0x1C,0x1C,0x6B,0x08,0x08,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x7F,0x08,0x08,0x08,0x08,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x06,0x04,0x03},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x06,0x00,0x00},/*".",14*/
{0x00,0x00,0x80,0x40,0x40,0x20,0x20,0x10,0x10,0x08,0x08,0x04,0x04,0x02,0x02,0x00},/*"/",15*/
{0x00,0x00,0x00,0x18,0x24,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x24,0x18,0x00,0x00},/*"0",16*/
{0x00,0x00,0x00,0x08,0x0E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"1",17*/
{0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x20,0x20,0x10,0x08,0x04,0x42,0x7E,0x00,0x00},/*"2",18*/
{0x00,0x00,0x00,0x3C,0x42,0x42,0x20,0x18,0x20,0x40,0x40,0x42,0x22,0x1C,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x20,0x30,0x28,0x24,0x24,0x22,0x22,0x7E,0x20,0x20,0x78,0x00,0x00},/*"4",20*/
{0x00,0x00,0x00,0x7E,0x02,0x02,0x02,0x1A,0x26,0x40,0x40,0x42,0x22,0x1C,0x00,0x00},/*"5",21*/
{0x00,0x00,0x00,0x38,0x24,0x02,0x02,0x1A,0x26,0x42,0x42,0x42,0x24,0x18,0x00,0x00},/*"6",22*/
{0x00,0x00,0x00,0x7E,0x22,0x22,0x10,0x10,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00},/*"7",23*/
{0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x24,0x18,0x24,0x42,0x42,0x42,0x3C,0x00,0x00},/*"8",24*/
{0x00,0x00,0x00,0x18,0x24,0x42,0x42,0x42,0x64,0x58,0x40,0x40,0x24,0x1C,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x00,0x00,0x00,0x00,0x18,0x18,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x04},/*";",27*/
{0x00,0x00,0x00,0x40,0x20,0x10,0x08,0x04,0x02,0x04,0x08,0x10,0x20,0x40,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x00,0x00,0x00,0x7F,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x00,0x02,0x04,0x08,0x10,0x20,0x40,0x20,0x10,0x08,0x04,0x02,0x00,0x00},/*">",30*/
{0x00,0x00,0x00,0x3C,0x42,0x42,0x46,0x40,0x20,0x10,0x10,0x00,0x18,0x18,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0x1C,0x22,0x5A,0x55,0x55,0x55,0x55,0x2D,0x42,0x22,0x1C,0x00,0x00},/*"@",32*/
{0x00,0x00,0x00,0x08,0x08,0x18,0x14,0x14,0x24,0x3C,0x22,0x42,0x42,0xE7,0x00,0x00},/*"A",33*/
{0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x1E,0x22,0x42,0x42,0x42,0x22,0x1F,0x00,0x00},/*"B",34*/
{0x00,0x00,0x00,0x7C,0x42,0x42,0x01,0x01,0x01,0x01,0x01,0x42,0x22,0x1C,0x00,0x00},/*"C",35*/
{0x00,0x00,0x00,0x1F,0x22,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x22,0x1F,0x00,0x00},/*"D",36*/
{0x00,0x00,0x00,0x3F,0x42,0x12,0x12,0x1E,0x12,0x12,0x02,0x42,0x42,0x3F,0x00,0x00},/*"E",37*/
{0x00,0x00,0x00,0x3F,0x42,0x12,0x12,0x1E,0x12,0x12,0x02,0x02,0x02,0x07,0x00,0x00},/*"F",38*/
{0x00,0x00,0x00,0x3C,0x22,0x22,0x01,0x01,0x01,0x71,0x21,0x22,0x22,0x1C,0x00,0x00},/*"G",39*/
{0x00,0x00,0x00,0xE7,0x42,0x42,0x42,0x42,0x7E,0x42,0x42,0x42,0x42,0xE7,0x00,0x00},/*"H",40*/
{0x00,0x00,0x00,0x3E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x7C,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x11,0x0F},/*"J",42*/
{0x00,0x00,0x00,0x77,0x22,0x12,0x0A,0x0E,0x0A,0x12,0x12,0x22,0x22,0x77,0x00,0x00},/*"K",43*/
{0x00,0x00,0x00,0x07,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x42,0x7F,0x00,0x00},/*"L",44*/
{0x00,0x00,0x00,0x77,0x36,0x36,0x36,0x36,0x2A,0x2A,0x2A,0x2A,0x2A,0x6B,0x00,0x00},/*"M",45*/
{0x00,0x00,0x00,0xE3,0x46,0x46,0x4A,0x4A,0x52,0x52,0x52,0x62,0x62,0x47,0x00,0x00},/*"N",46*/
{0x00,0x00,0x00,0x1C,0x22,0x41,0x41,0x41,0x41,0x41,0x41,0x41,0x22,0x1C,0x00,0x00},/*"O",47*/
{0x00,0x00,0x00,0x3F,0x42,0x42,0x42,0x42,0x3E,0x02,0x02,0x02,0x02,0x07,0x00,0x00},/*"P",48*/
{0x00,0x00,0x00,0x1C,0x22,0x41,0x41,0x41,0x41,0x41,0x4D,0x53,0x32,0x1C,0x60,0x00},/*"Q",49*/
{0x00,0x00,0x00,0x3F,0x42,0x42,0x42,0x3E,0x12,0x12,0x22,0x22,0x42,0xC7,0x00,0x00},/*"R",50*/
{0x00,0x00,0x00,0x7C,0x42,0x42,0x02,0x04,0x18,0x20,0x40,0x42,0x42,0x3E,0x00,0x00},/*"S",51*/
{0x00,0x00,0x00,0x7F,0x49,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x1C,0x00,0x00},/*"T",52*/
{0x00,0x00,0x00,0xE7,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0x3C,0x00,0x00},/*"U",53*/
{0x00,0x00,0x00,0xE7,0x42,0x42,0x22,0x24,0x24,0x14,0x14,0x18,0x08,0x08,0x00,0x00},/*"V",54*/
{0x00,0x00,0x00,0x6B,0x49,0x49,0x49,0x49,0x55,0x55,0x36,0x22,0x22,0x22,0x00,0x00},/*"W",55*/
{0x00,0x00,0x00,0xE7,0x42,0x24,0x24,0x18,0x18,0x18,0x24,0x24,0x42,0xE7,0x00,0x00},/*"X",56*/
{0x00,0x00,0x00,0x77,0x22,0x22,0x14,0x14,0x08,0x08,0x08,0x08,0x08,0x1C,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x00,0x7E,0x21,0x20,0x10,0x10,0x08,0x04,0x04,0x42,0x42,0x3F,0x00,0x00},/*"Z",58*/
{0x00,0x78,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x78,0x00},/*"[",59*/
{0x00,0x00,0x02,0x02,0x04,0x04,0x08,0x08,0x08,0x10,0x10,0x20,0x20,0x20,0x40,0x40},/*"\",60*/
{0x00,0x1E,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x1E,0x00},/*"]",61*/
{0x00,0x38,0x44,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF},/*"_",63*/
{0x00,0x06,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x78,0x44,0x42,0x42,0xFC,0x00,0x00},/*"a",65*/
{0x00,0x00,0x00,0x03,0x02,0x02,0x02,0x1A,0x26,0x42,0x42,0x42,0x26,0x1A,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x44,0x02,0x02,0x02,0x44,0x38,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x60,0x40,0x40,0x40,0x78,0x44,0x42,0x42,0x42,0x64,0xD8,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x7E,0x02,0x02,0x42,0x3C,0x00,0x00},/*"e",69*/
{0x00,0x00,0x00,0xF0,0x88,0x08,0x08,0x7E,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7C,0x22,0x22,0x1C,0x02,0x3C,0x42,0x42,0x3C},/*"g",71*/
{0x00,0x00,0x00,0x03,0x02,0x02,0x02,0x3A,0x46,0x42,0x42,0x42,0x42,0xE7,0x00,0x00},/*"h",72*/
{0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x0E,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x38,0x20,0x20,0x20,0x20,0x20,0x20,0x22,0x1E},/*"j",74*/
{0x00,0x00,0x00,0x03,0x02,0x02,0x02,0x72,0x12,0x0A,0x16,0x12,0x22,0x77,0x00,0x00},/*"k",75*/
{0x00,0x00,0x00,0x0E,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x3E,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x92,0x92,0x92,0x92,0x92,0xB7,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3B,0x46,0x42,0x42,0x42,0x42,0xE7,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3C,0x42,0x42,0x42,0x42,0x42,0x3C,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1B,0x26,0x42,0x42,0x42,0x22,0x1E,0x02,0x07},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x44,0x42,0x42,0x42,0x44,0x78,0x40,0xE0},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x77,0x4C,0x04,0x04,0x04,0x04,0x1F,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7C,0x42,0x02,0x3C,0x40,0x42,0x3E,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x3E,0x08,0x08,0x08,0x08,0x08,0x30,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x63,0x42,0x42,0x42,0x42,0x62,0xDC,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE7,0x42,0x24,0x24,0x14,0x08,0x08,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEB,0x49,0x49,0x55,0x55,0x22,0x22,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x76,0x24,0x18,0x18,0x18,0x24,0x6E,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE7,0x42,0x24,0x24,0x14,0x18,0x08,0x08,0x07},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x22,0x10,0x08,0x08,0x44,0x7E,0x00,0x00},/*"z",90*/
{0x00,0xC0,0x20,0x20,0x20,0x20,0x20,0x10,0x20,0x20,0x20,0x20,0x20,0x20,0xC0,0x00},/*"{",91*/
{0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10},/*"|",92*/
{0x00,0x06,0x08,0x08,0x08,0x08,0x08,0x10,0x08,0x08,0x08,0x08,0x08,0x08,0x06,0x00},/*"}",93*/
{0x0C,0x32,0xC2,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
const unsigned char ascii_2412[][48]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x00,0x00,0x60,0x06,0x60,0x06,0x30,0x03,0x98,0x01,0x88,0x00,0x44,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x02,0x10,0x02,0x10,0x02,0x10,0x02,0xFE,0x07,0xFE,0x07,0x08,0x02,0x08,0x01,0x08,0x01,0x08,0x01,0x08,0x01,0xFE,0x07,0xFE,0x07,0x04,0x01,0x04,0x01,0x04,0x01,0x04,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"#",3*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x40,0x00,0xF0,0x01,0x58,0x03,0x4C,0x03,0xCC,0x03,0x4C,0x00,0x58,0x00,0x70,0x00,0xE0,0x00,0xC0,0x01,0xC0,0x01,0x40,0x03,0x4C,0x03,0x5C,0x03,0x4C,0x03,0x48,0x01,0xF0,0x00,0x40,0x00,0x40,0x00,0x00,0x00},/*"$",4*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x01,0x0A,0x01,0x91,0x00,0x91,0x00,0x91,0x00,0x51,0x00,0x51,0x00,0x3A,0x00,0xAE,0x03,0xA0,0x02,0x50,0x04,0x50,0x04,0x48,0x04,0x48,0x04,0x48,0x04,0x84,0x02,0x84,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"%",5*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x6C,0x00,0x6C,0x00,0x6C,0x00,0x6C,0x00,0x6C,0x00,0x2C,0x00,0x98,0x07,0x1C,0x01,0x1A,0x01,0x33,0x01,0x33,0x01,0x63,0x01,0xE3,0x00,0xC3,0x08,0xC6,0x09,0x3C,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"&",6*/
{0x00,0x00,0x00,0x00,0x0C,0x00,0x1C,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x02,0x00,0x01,0x80,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x40,0x00,0x40,0x00,0x80,0x00,0x80,0x00,0x00,0x01,0x00,0x02,0x00,0x04,0x00,0x00},/*"(",8*/
{0x00,0x00,0x00,0x00,0x02,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x10,0x00,0x20,0x00,0x20,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x02,0x00,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0xC0,0x00,0x40,0x00,0x46,0x0C,0x4E,0x0F,0xD0,0x01,0xF0,0x01,0x5E,0x0F,0x46,0x0C,0x40,0x00,0x40,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0xFE,0x0F,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x1C,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x04,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x00,0x1C,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x06,0x00,0x02,0x00,0x03,0x00,0x01,0x00,0x01,0x80,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x60,0x00,0x20,0x00,0x20,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x08,0x00,0x0C,0x00,0x04,0x00,0x06,0x00,0x02,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x0C,0x03,0x0C,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x03,0x0C,0x03,0x98,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"0",16*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x7C,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFC,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"1",17*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x00,0x84,0x01,0x02,0x03,0x06,0x03,0x06,0x03,0x00,0x03,0x00,0x01,0x80,0x01,0xC0,0x00,0x60,0x00,0x20,0x00,0x10,0x00,0x08,0x02,0x04,0x02,0x06,0x02,0xFE,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"2",18*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x00,0xC6,0x00,0x86,0x01,0x86,0x01,0x80,0x01,0x80,0x01,0xC0,0x00,0x70,0x00,0x80,0x01,0x00,0x01,0x00,0x03,0x00,0x03,0x06,0x03,0x06,0x03,0x86,0x01,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0x80,0x01,0xC0,0x01,0xA0,0x01,0xA0,0x01,0x90,0x01,0x88,0x01,0x88,0x01,0x84,0x01,0x82,0x01,0xFE,0x0F,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xE0,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"4",20*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x03,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0xF4,0x00,0x8C,0x01,0x04,0x03,0x00,0x03,0x00,0x03,0x06,0x03,0x06,0x03,0x82,0x01,0x84,0x01,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"5",21*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x01,0x18,0x03,0x0C,0x03,0x0C,0x00,0x04,0x00,0x06,0x00,0xE6,0x01,0x16,0x03,0x0E,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x04,0x06,0x0C,0x02,0x18,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"6",22*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x07,0x0C,0x06,0x04,0x02,0x04,0x01,0x00,0x01,0x00,0x01,0x80,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x01,0x0C,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x02,0x1C,0x03,0xF0,0x00,0xC8,0x01,0x0C,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x03,0xF0,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"8",24*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x0C,0x01,0x0C,0x03,0x06,0x02,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x07,0x8C,0x06,0x78,0x06,0x00,0x06,0x00,0x03,0x00,0x03,0x0C,0x01,0x8C,0x01,0x78,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0xE0,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0xE0,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x40,0x00,0x20,0x00,0x20,0x00},/*";",27*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x02,0x00,0x01,0x80,0x00,0x40,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x40,0x00,0x80,0x00,0x00,0x01,0x00,0x02,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x40,0x00,0x80,0x00,0x00,0x01,0x00,0x02,0x00,0x04,0x00,0x02,0x00,0x01,0x80,0x00,0x40,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x03,0x18,0x06,0x04,0x0C,0x04,0x0C,0x0C,0x0C,0x0C,0x0C,0x00,0x07,0x80,0x01,0x40,0x00,0x40,0x00,0x40,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0xE0,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x18,0x03,0x0C,0x02,0xCC,0x05,0x64,0x05,0x66,0x05,0xA6,0x05,0xB6,0x04,0xB6,0x04,0xB6,0x04,0xB6,0x04,0xB6,0x02,0xE4,0x01,0x0C,0x04,0x0C,0x02,0x18,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"@",32*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x50,0x00,0xD0,0x00,0x90,0x00,0x90,0x00,0x88,0x00,0x88,0x01,0x08,0x01,0xF8,0x01,0x04,0x03,0x04,0x03,0x04,0x02,0x02,0x02,0x02,0x06,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00},/*"A",33*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x00,0x8C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x8C,0x01,0xFC,0x00,0x0C,0x03,0x0C,0x02,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x03,0xFE,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"B",34*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x03,0x18,0x03,0x0C,0x06,0x0C,0x04,0x04,0x04,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x04,0x0C,0x04,0x0C,0x02,0x18,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"C",35*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x00,0x8C,0x01,0x0C,0x03,0x0C,0x03,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x03,0x0C,0x03,0x8C,0x01,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"D",36*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x03,0x06,0x03,0x06,0x04,0x06,0x04,0x06,0x00,0x86,0x00,0x86,0x00,0xFE,0x00,0x86,0x00,0x86,0x00,0x86,0x00,0x06,0x00,0x06,0x04,0x06,0x04,0x06,0x02,0xFF,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"E",37*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x03,0x06,0x03,0x06,0x04,0x06,0x04,0x06,0x00,0x86,0x00,0x86,0x00,0xFE,0x00,0x86,0x00,0x86,0x00,0x86,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x18,0x01,0x0C,0x02,0x0C,0x02,0x04,0x02,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0xC6,0x0F,0x06,0x03,0x06,0x03,0x0C,0x03,0x0C,0x03,0x18,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"G",39*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0xFE,0x07,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00},/*"H",40*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x03,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFC,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x07,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC6,0x00,0x66,0x00,0x3C,0x00},/*"J",42*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xCF,0x03,0x86,0x01,0xC6,0x00,0x46,0x00,0x26,0x00,0x16,0x00,0x36,0x00,0x2E,0x00,0x6E,0x00,0x46,0x00,0xC6,0x00,0x86,0x00,0x86,0x01,0x06,0x01,0x06,0x03,0x8F,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"K",43*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x04,0x06,0x04,0x06,0x02,0xFF,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"L",44*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x07,0x86,0x03,0x86,0x03,0x8E,0x03,0x8E,0x03,0x4E,0x03,0x4E,0x03,0x4A,0x03,0x5A,0x03,0x5A,0x03,0x3A,0x03,0x32,0x03,0x32,0x03,0x32,0x03,0x12,0x03,0x87,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"M",45*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x8E,0x0F,0x0C,0x02,0x1C,0x02,0x1C,0x02,0x34,0x02,0x34,0x02,0x64,0x02,0x64,0x02,0x44,0x02,0xC4,0x02,0x84,0x02,0x84,0x03,0x84,0x03,0x04,0x03,0x04,0x03,0x1F,0x02,0x00,0x00,0x00,0x00,0x00,0x00},/*"N",46*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x0C,0x03,0x0C,0x02,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x02,0x0C,0x03,0x98,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"O",47*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x06,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x86,0x03,0xFE,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x0C,0x03,0x0C,0x02,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x76,0x06,0x4C,0x02,0xCC,0x03,0x98,0x01,0xF0,0x00,0x80,0x07,0x00,0x03,0x00,0x00},/*"Q",49*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x01,0x06,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x03,0xFE,0x00,0x46,0x00,0xC6,0x00,0x86,0x00,0x86,0x01,0x06,0x03,0x06,0x03,0x06,0x06,0x0F,0x0E,0x00,0x00,0x00,0x00,0x00,0x00},/*"R",50*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x02,0x0C,0x03,0x06,0x02,0x06,0x02,0x06,0x00,0x0E,0x00,0x3C,0x00,0xF8,0x00,0xE0,0x03,0x80,0x03,0x00,0x07,0x02,0x06,0x02,0x06,0x06,0x06,0x0C,0x03,0xF0,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"S",51*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x62,0x04,0x61,0x08,0x61,0x08,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xF8,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"T",52*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1E,0x07,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x0C,0x02,0x18,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"U",53*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x07,0x06,0x02,0x04,0x01,0x04,0x01,0x0C,0x01,0x0C,0x01,0x88,0x00,0x88,0x00,0x98,0x00,0x98,0x00,0x50,0x00,0x50,0x00,0x70,0x00,0x30,0x00,0x20,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"V",54*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF7,0x0E,0x62,0x04,0x42,0x04,0x46,0x04,0x46,0x04,0x64,0x02,0x64,0x02,0xE4,0x02,0xE4,0x02,0x9C,0x02,0x9C,0x01,0x98,0x01,0x98,0x01,0x88,0x01,0x88,0x00,0x88,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"W",55*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x9E,0x07,0x0C,0x01,0x08,0x01,0x18,0x01,0x90,0x00,0xB0,0x00,0x60,0x00,0x20,0x00,0x60,0x00,0x60,0x00,0xD0,0x00,0x90,0x00,0x88,0x01,0x08,0x01,0x04,0x03,0x8E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"X",56*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x0F,0x06,0x04,0x04,0x02,0x0C,0x02,0x08,0x01,0x18,0x01,0xB8,0x00,0xB0,0x00,0x70,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xF8,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x07,0x0C,0x02,0x06,0x03,0x02,0x01,0x80,0x01,0x80,0x00,0x40,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0x10,0x00,0x18,0x00,0x08,0x04,0x0C,0x04,0x04,0x02,0xFE,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0xE0,0x03,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0xE0,0x03,0x00,0x00},/*"[",59*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x04,0x00,0x08,0x00,0x08,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x20,0x00,0x20,0x00,0x40,0x00,0x40,0x00,0xC0,0x00,0x80,0x00,0x80,0x00,0x00,0x01,0x00,0x01,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x04},/*"\",60*/
{0x00,0x00,0x00,0x00,0x7C,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x7C,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x60,0x00,0x90,0x00,0x08,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x0F},/*"_",63*/
{0x00,0x00,0x00,0x00,0x18,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x01,0x0C,0x03,0x0C,0x03,0x00,0x03,0xE0,0x03,0x1C,0x03,0x0E,0x03,0x06,0x03,0x06,0x03,0x8E,0x0B,0x7C,0x0E,0x00,0x00,0x00,0x00,0x00,0x00},/*"a",65*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x0E,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0xCC,0x01,0x3C,0x03,0x1C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x02,0x1C,0x03,0xE4,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x8C,0x01,0x8C,0x01,0x86,0x01,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x02,0x0C,0x02,0x0C,0x01,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0xC0,0x03,0x00,0x03,0x00,0x03,0x00,0x03,0x00,0x03,0x78,0x03,0x8C,0x03,0x0C,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x04,0x03,0x8C,0x07,0x78,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x01,0x18,0x03,0x08,0x02,0x0C,0x06,0x0C,0x06,0xFC,0x07,0x0C,0x00,0x0C,0x00,0x18,0x04,0x18,0x02,0xE0,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"e",69*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x03,0x60,0x06,0x30,0x06,0x30,0x00,0x30,0x00,0xFE,0x01,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0xFC,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x07,0xD8,0x06,0x8C,0x01,0x8C,0x01,0x8C,0x01,0x98,0x01,0xF8,0x00,0x0C,0x00,0xFC,0x00,0xCC,0x03,0x06,0x03,0x06,0x03,0x8E,0x03,0xF8,0x00},/*"g",71*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x0E,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0xEC,0x01,0x1C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x9E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"h",72*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x60,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x7C,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFC,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x01,0xC0,0x01,0x00,0x00,0x00,0x00,0x00,0x01,0xF0,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xCC,0x00,0x7C,0x00},/*"j",74*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x0E,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x8C,0x03,0x8C,0x00,0x8C,0x00,0x4C,0x00,0x6C,0x00,0x5C,0x00,0x8C,0x00,0x8C,0x01,0x0C,0x01,0x0C,0x03,0x9E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"k",75*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x7C,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFC,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x37,0x07,0xEE,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0x66,0x06,0xFF,0x0F,0x00,0x00,0x00,0x00,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEE,0x01,0x1C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x9E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x0C,0x03,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x0C,0x03,0x0C,0x03,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEE,0x01,0x1C,0x03,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x0C,0x03,0x1C,0x03,0xEC,0x01,0x0C,0x00,0x0C,0x00,0x3E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x02,0x8C,0x03,0x0C,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x06,0x03,0x04,0x03,0x8C,0x03,0x78,0x03,0x00,0x03,0x00,0x03,0xC0,0x07},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x9F,0x03,0x58,0x06,0x38,0x06,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x03,0x1C,0x03,0x0C,0x02,0x0C,0x02,0x38,0x00,0xF0,0x00,0xC0,0x03,0x04,0x03,0x04,0x03,0x8C,0x03,0xFC,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x20,0x00,0x30,0x00,0x30,0x00,0xFE,0x01,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x02,0x30,0x02,0xE0,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x02,0x8E,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x0C,0x03,0x9C,0x07,0x78,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1E,0x07,0x0C,0x02,0x08,0x01,0x08,0x01,0x18,0x01,0x90,0x00,0xB0,0x00,0xB0,0x00,0x60,0x00,0x60,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF7,0x0E,0x62,0x04,0x46,0x04,0x64,0x02,0x64,0x02,0xEC,0x02,0x9C,0x01,0x98,0x01,0x98,0x01,0x98,0x01,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xBC,0x07,0x18,0x01,0x10,0x01,0xB0,0x00,0x60,0x00,0x60,0x00,0xE0,0x00,0x90,0x00,0x08,0x01,0x08,0x03,0x9E,0x07,0x00,0x00,0x00,0x00,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x9E,0x07,0x08,0x01,0x08,0x01,0x08,0x01,0x90,0x00,0x90,0x00,0xB0,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x20,0x00,0x20,0x00,0x24,0x00,0x1C,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x01,0x84,0x01,0xC4,0x00,0x44,0x00,0x60,0x00,0x20,0x00,0x30,0x00,0x18,0x02,0x08,0x02,0x0C,0x03,0xFC,0x01,0x00,0x00,0x00,0x00,0x00,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x03,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x40,0x00,0x20,0x00,0x40,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x00,0x03,0x00,0x00},/*"{",91*/
{0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00},/*"|",92*/
{0x00,0x00,0x00,0x00,0x0C,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x20,0x00,0x40,0x00,0x20,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x10,0x00,0x0C,0x00,0x00,0x00},/*"}",93*/
{0x00,0x00,0x1C,0x00,0x22,0x04,0xC2,0x04,0x80,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/


};
const unsigned char ascii_3216[][64]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0xC0,0x03,0xC0,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x1C,0xE0,0x1C,0xF0,0x1E,0x70,0x0E,0x38,0x07,0x18,0x03,0x08,0x01,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x10,0x20,0x10,0x20,0x10,0x20,0x10,0x20,0x10,0xFE,0x7F,0xFE,0x7F,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0xFE,0x7F,0xFE,0x7F,0x08,0x04,0x08,0x04,0x08,0x04,0x08,0x04,0x08,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"#",3*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x01,0xC0,0x07,0x60,0x19,0x10,0x31,0x18,0x31,0x18,0x39,0x18,0x39,0x38,0x01,0x70,0x01,0xE0,0x01,0xC0,0x03,0x80,0x07,0x00,0x0F,0x00,0x1D,0x00,0x39,0x00,0x31,0x1C,0x31,0x1C,0x31,0x0C,0x31,0x0C,0x11,0x18,0x0D,0xE0,0x07,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x00,0x00,0x00},/*"$",4*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x10,0x36,0x18,0x63,0x08,0x63,0x0C,0x63,0x04,0x63,0x04,0x63,0x02,0x63,0x02,0x63,0x01,0x36,0x1D,0x9C,0x37,0x80,0x22,0x80,0x63,0x40,0x63,0x40,0x63,0x20,0x63,0x20,0x63,0x30,0x63,0x10,0x22,0x18,0x36,0x08,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"%",5*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x98,0x01,0x8C,0x01,0x8C,0x01,0x8C,0x01,0x8C,0x01,0x8C,0x00,0xCC,0x00,0x78,0x00,0x18,0x3E,0x1C,0x08,0x36,0x08,0x32,0x08,0x63,0x04,0x63,0x04,0xC3,0x04,0xC3,0x03,0x83,0x43,0x06,0x43,0x8E,0x26,0x78,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"&",6*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x00,0x3C,0x00,0x3C,0x00,0x30,0x00,0x30,0x00,0x10,0x00,0x0C,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x0C,0x00,0x04,0x00,0x06,0x00,0x03,0x00,0x03,0x00,0x03,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x00,0x03,0x00,0x03,0x00,0x03,0x00,0x06,0x00,0x06,0x00,0x0C,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x40,0x00,0x00},/*"(",8*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x30,0x00,0x20,0x00,0x60,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xC0,0x00,0xC0,0x00,0xC0,0x00,0x60,0x00,0x60,0x00,0x30,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x02,0x00,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x03,0x80,0x03,0x00,0x01,0x1C,0x71,0x3C,0x79,0x78,0x3D,0xC0,0x07,0x00,0x01,0xC0,0x07,0x78,0x3D,0x3C,0x79,0x1C,0x71,0x00,0x01,0x80,0x03,0x80,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0xFC,0x7F,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x00,0x3C,0x00,0x3C,0x00,0x30,0x00,0x30,0x00,0x10,0x00,0x0C,0x00,0x06,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x3C,0x00,0x3C,0x00,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x00,0x60,0x00,0x20,0x00,0x30,0x00,0x10,0x00,0x18,0x00,0x08,0x00,0x0C,0x00,0x04,0x00,0x06,0x00,0x02,0x00,0x03,0x00,0x01,0x80,0x01,0x80,0x00,0xC0,0x00,0x40,0x00,0x60,0x00,0x20,0x00,0x30,0x00,0x10,0x00,0x18,0x00,0x08,0x00,0x0C,0x00,0x04,0x00,0x06,0x00,0x02,0x00,0x00,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x60,0x0C,0x30,0x18,0x18,0x30,0x18,0x30,0x18,0x20,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x18,0x20,0x18,0x30,0x18,0x30,0x30,0x18,0x60,0x0C,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"0",16*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x01,0xF8,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xC0,0x03,0xF8,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"1",17*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x07,0x10,0x1C,0x08,0x18,0x04,0x30,0x04,0x30,0x0C,0x30,0x0C,0x30,0x00,0x30,0x00,0x18,0x00,0x08,0x00,0x04,0x00,0x02,0x00,0x01,0x80,0x00,0x40,0x00,0x20,0x20,0x10,0x20,0x08,0x20,0x04,0x30,0xFC,0x1F,0xFC,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"2",18*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x03,0x18,0x0E,0x0C,0x0C,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x00,0x18,0x00,0x0C,0x00,0x06,0xC0,0x03,0x00,0x0E,0x00,0x18,0x00,0x10,0x00,0x30,0x00,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x10,0x0C,0x18,0x18,0x0C,0xE0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x0E,0x00,0x0E,0x00,0x0F,0x80,0x0E,0x80,0x0E,0x40,0x0E,0x60,0x0E,0x20,0x0E,0x10,0x0E,0x10,0x0E,0x08,0x0E,0x04,0x0E,0x04,0x0E,0xFE,0x7F,0x00,0x0E,0x00,0x0E,0x00,0x0E,0x00,0x0E,0x00,0x0E,0x00,0x0E,0xC0,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"4",20*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x3F,0xF0,0x3F,0x10,0x00,0x10,0x00,0x10,0x00,0x08,0x00,0x08,0x00,0xC8,0x07,0x28,0x0C,0x18,0x18,0x08,0x10,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x0C,0x30,0x0C,0x30,0x04,0x18,0x04,0x18,0x08,0x0C,0xF0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"5",21*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x0F,0xC0,0x10,0x20,0x30,0x10,0x30,0x18,0x00,0x18,0x00,0x08,0x00,0x0C,0x00,0x8C,0x0F,0x6C,0x18,0x3C,0x30,0x1C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x18,0x60,0x18,0x20,0x30,0x30,0x60,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"6",22*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x3F,0xF8,0x3F,0x1C,0x10,0x0C,0x08,0x04,0x08,0x04,0x04,0x00,0x04,0x00,0x02,0x00,0x02,0x00,0x01,0x00,0x01,0x00,0x01,0x80,0x00,0x80,0x00,0x80,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x07,0x30,0x0C,0x18,0x18,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x1C,0x30,0x38,0x18,0x70,0x08,0xE0,0x07,0xB0,0x07,0x18,0x0E,0x0C,0x1C,0x06,0x38,0x06,0x30,0x06,0x30,0x06,0x30,0x06,0x30,0x0C,0x18,0x18,0x0C,0xE0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"8",24*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x03,0x18,0x04,0x0C,0x08,0x0C,0x18,0x06,0x10,0x06,0x30,0x06,0x30,0x06,0x30,0x06,0x30,0x06,0x38,0x0C,0x3C,0x18,0x36,0xF0,0x31,0x00,0x30,0x00,0x18,0x00,0x18,0x00,0x18,0x0C,0x0C,0x0C,0x06,0x0C,0x03,0xF0,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0xC0,0x03,0xC0,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0xC0,0x03,0xC0,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0xC0,0x00,0x80,0x00,0x80,0x00,0x40,0x00,0x40,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x06,0x00,0x03,0x80,0x01,0xC0,0x00,0x60,0x00,0x30,0x00,0x18,0x00,0x0C,0x00,0x18,0x00,0x30,0x00,0x60,0x00,0xC0,0x00,0x80,0x01,0x00,0x03,0x00,0x06,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x08,0x00,0x10,0x00,0x20,0x00,0x60,0x00,0xC0,0x00,0x80,0x01,0x00,0x03,0x00,0x06,0x00,0x0C,0x00,0x18,0x00,0x30,0x00,0x18,0x00,0x0C,0x00,0x06,0x00,0x03,0x80,0x01,0xC0,0x00,0x60,0x00,0x20,0x00,0x10,0x00,0x08,0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x30,0x18,0x08,0x30,0x08,0x60,0x0C,0x60,0x1C,0x60,0x1C,0x60,0x1C,0x60,0x00,0x30,0x00,0x1C,0x00,0x06,0x00,0x01,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x80,0x01,0xC0,0x03,0xC0,0x03,0x80,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x60,0x18,0x10,0x30,0x18,0x20,0x0C,0x2F,0x8C,0x4D,0x86,0x4C,0xC6,0x4C,0xC6,0x4C,0x66,0x4C,0x66,0x44,0x66,0x44,0x66,0x26,0x66,0x26,0x66,0x15,0xCC,0x1C,0x0C,0x40,0x08,0x20,0x18,0x30,0x30,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"@",32*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x01,0x40,0x01,0x60,0x03,0x20,0x03,0x20,0x03,0x20,0x03,0x30,0x06,0x10,0x06,0x10,0x06,0x10,0x06,0xF8,0x0F,0x08,0x0C,0x08,0x0C,0x08,0x0C,0x0C,0x0C,0x04,0x18,0x04,0x18,0x06,0x18,0x1F,0x7C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"A",33*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x18,0x1C,0x18,0x38,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x18,0x18,0x0C,0xF8,0x07,0x18,0x18,0x18,0x30,0x18,0x20,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x30,0x18,0x18,0xFE,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"B",34*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x27,0x60,0x38,0x10,0x30,0x18,0x20,0x0C,0x40,0x0C,0x40,0x04,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x0C,0x40,0x0C,0x40,0x0C,0x20,0x18,0x30,0x30,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"C",35*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x03,0x18,0x0E,0x18,0x18,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x30,0x18,0x30,0x18,0x10,0x18,0x18,0x18,0x0E,0xFE,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"D",36*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x3F,0x18,0x30,0x18,0x20,0x18,0x60,0x18,0x40,0x18,0x00,0x18,0x08,0x18,0x08,0x18,0x0C,0xF8,0x0F,0x18,0x0C,0x18,0x08,0x18,0x08,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x40,0x18,0x40,0x18,0x20,0x18,0x30,0xFE,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"E",37*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x7F,0x18,0x70,0x18,0x40,0x18,0xC0,0x18,0x80,0x18,0x00,0x18,0x10,0x18,0x10,0x18,0x18,0xF8,0x1F,0x18,0x18,0x18,0x10,0x18,0x10,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x13,0x70,0x1C,0x10,0x10,0x18,0x10,0x0C,0x20,0x0C,0x20,0x04,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0xFC,0x06,0x30,0x06,0x30,0x0C,0x30,0x0C,0x30,0x18,0x30,0x18,0x30,0x30,0x08,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"G",39*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x7E,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0xFC,0x1F,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x3F,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"H",40*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x1F,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xF8,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x7F,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x00,0x06,0x0E,0x06,0x0E,0x03,0x8E,0x01,0xFC,0x00},/*"J",42*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x7C,0x18,0x18,0x18,0x08,0x18,0x04,0x18,0x06,0x18,0x02,0x18,0x01,0x98,0x01,0x98,0x01,0xD8,0x01,0xB8,0x03,0x38,0x03,0x18,0x07,0x18,0x06,0x18,0x0E,0x18,0x0C,0x18,0x1C,0x18,0x18,0x18,0x30,0x18,0x30,0x7E,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"K",43*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x40,0x18,0x40,0x18,0x20,0x18,0x30,0xFE,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"L",44*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xF8,0x1C,0x38,0x1C,0x38,0x1C,0x38,0x1C,0x3C,0x34,0x34,0x34,0x34,0x34,0x34,0x34,0x36,0x74,0x32,0x64,0x32,0x64,0x32,0x64,0x32,0x64,0x31,0xC4,0x31,0xC4,0x31,0xC4,0x31,0xC4,0x30,0xC4,0x30,0x84,0x30,0x9F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"M",45*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x7C,0x1C,0x10,0x3C,0x10,0x34,0x10,0x34,0x10,0x74,0x10,0x64,0x10,0xE4,0x10,0xC4,0x10,0xC4,0x11,0x84,0x11,0x84,0x13,0x04,0x13,0x04,0x17,0x04,0x16,0x04,0x1E,0x04,0x1C,0x04,0x1C,0x04,0x1C,0x04,0x18,0x1F,0x18,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"N",46*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x03,0x30,0x0C,0x18,0x18,0x08,0x10,0x0C,0x30,0x0C,0x30,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x0C,0x20,0x0C,0x30,0x08,0x10,0x18,0x18,0x30,0x0C,0xC0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"O",47*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x0F,0x18,0x18,0x18,0x30,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x30,0x18,0x18,0xF8,0x0F,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x03,0x30,0x0C,0x18,0x18,0x0C,0x10,0x0C,0x30,0x0C,0x20,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x60,0xE4,0x61,0x2C,0x33,0x1C,0x32,0x18,0x16,0x30,0x0E,0xC0,0x07,0x00,0x4C,0x00,0x7C,0x00,0x38,0x00,0x00,0x00,0x00},/*"Q",49*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0x07,0x18,0x1C,0x18,0x38,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x18,0x18,0x0C,0xF8,0x07,0x98,0x03,0x18,0x03,0x18,0x07,0x18,0x06,0x18,0x06,0x18,0x0E,0x18,0x0C,0x18,0x0C,0x18,0x1C,0x18,0x18,0x7E,0x78,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"R",50*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x27,0x30,0x38,0x18,0x30,0x0C,0x20,0x0C,0x20,0x0C,0x00,0x0C,0x00,0x18,0x00,0x78,0x00,0xE0,0x03,0x80,0x0F,0x00,0x1E,0x00,0x38,0x00,0x70,0x00,0x60,0x04,0x60,0x04,0x60,0x08,0x60,0x18,0x30,0x38,0x18,0xC8,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"S",51*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x3F,0x8C,0x21,0x84,0x61,0x82,0x41,0x82,0x41,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xE0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"T",52*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x7C,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x0C,0x10,0x08,0x08,0x38,0x04,0xE0,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"U",53*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0xF8,0x18,0x20,0x18,0x20,0x18,0x20,0x30,0x10,0x30,0x10,0x30,0x10,0x30,0x10,0x60,0x08,0x60,0x08,0x60,0x08,0xE0,0x0C,0xC0,0x04,0xC0,0x04,0xC0,0x04,0x80,0x03,0x80,0x03,0x80,0x03,0x80,0x03,0x00,0x01,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"V",54*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xDF,0xF3,0x86,0x61,0x86,0x21,0x86,0x21,0x8C,0x21,0x0C,0x21,0x8C,0x23,0x8C,0x13,0x8C,0x13,0x8C,0x13,0x4C,0x13,0x58,0x12,0x58,0x16,0x58,0x0E,0x38,0x0E,0x38,0x0E,0x38,0x0E,0x30,0x0C,0x10,0x04,0x10,0x04,0x10,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"W",55*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x3E,0x18,0x08,0x38,0x08,0x30,0x04,0x30,0x04,0x70,0x02,0x60,0x02,0xE0,0x01,0xC0,0x01,0xC0,0x01,0x80,0x01,0x80,0x03,0x40,0x03,0x40,0x07,0x20,0x06,0x20,0x06,0x10,0x0C,0x10,0x0C,0x08,0x18,0x08,0x18,0x3E,0x7C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"X",56*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x7C,0x1C,0x10,0x18,0x10,0x18,0x08,0x30,0x08,0x30,0x0C,0x70,0x04,0x60,0x04,0x60,0x02,0xC0,0x02,0xC0,0x02,0xC0,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xE0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"Y",57*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x3F,0x18,0x18,0x08,0x18,0x04,0x0C,0x04,0x0E,0x00,0x06,0x00,0x07,0x00,0x03,0x80,0x03,0x80,0x01,0xC0,0x01,0xC0,0x00,0xE0,0x00,0x60,0x00,0x70,0x00,0x30,0x00,0x38,0x20,0x18,0x20,0x1C,0x10,0x0C,0x18,0xFE,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x3F,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0xC0,0x3F,0x00,0x00,0x00,0x00},/*"[",59*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0x18,0x00,0x18,0x00,0x10,0x00,0x30,0x00,0x20,0x00,0x60,0x00,0x60,0x00,0x40,0x00,0xC0,0x00,0x80,0x00,0x80,0x01,0x80,0x01,0x00,0x01,0x00,0x03,0x00,0x02,0x00,0x06,0x00,0x06,0x00,0x04,0x00,0x0C,0x00,0x08,0x00,0x18,0x00,0x18,0x00,0x10,0x00,0x30,0x00,0x20,0x00,0x00},/*"\",60*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x03,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x02,0xFC,0x03,0x00,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x07,0xC0,0x06,0x20,0x08,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF},/*"_",63*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x78,0x00,0xC0,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x03,0x18,0x06,0x0C,0x0C,0x0C,0x0C,0x00,0x0C,0x80,0x0F,0x70,0x0C,0x1C,0x0C,0x0C,0x0C,0x06,0x0C,0x06,0x0C,0x06,0x4C,0x0C,0x4F,0xF8,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"a",65*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x0F,0xD8,0x18,0x38,0x30,0x38,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x20,0x38,0x30,0x78,0x18,0xC8,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x70,0x0C,0x18,0x18,0x18,0x18,0x0C,0x18,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x0C,0x20,0x18,0x20,0x18,0x10,0x30,0x08,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0xE0,0x1B,0x30,0x1C,0x18,0x18,0x18,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x0C,0x18,0x08,0x18,0x18,0x1C,0x30,0x7A,0xE0,0x09,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x30,0x0C,0x18,0x18,0x08,0x10,0x0C,0x30,0x0C,0x30,0xFC,0x3F,0x0C,0x00,0x0C,0x00,0x0C,0x00,0x18,0x20,0x18,0x10,0x70,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"e",69*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3E,0x80,0xC3,0x80,0xC0,0xC0,0xC0,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xFC,0x1F,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xF8,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x77,0x30,0x6C,0x10,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x10,0x18,0x30,0x0C,0xF0,0x07,0x18,0x00,0x18,0x00,0xF0,0x0F,0xF0,0x3F,0x08,0x70,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x38,0x38,0xE0,0x0F},/*"g",71*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x98,0x0F,0xD8,0x18,0x38,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x7E,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"h",72*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x03,0x80,0x03,0x80,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xF8,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xF8,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x38,0x00,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x80,0x1F,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x18,0x0C,0x18,0x06,0xF0,0x03},/*"j",74*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x3E,0x18,0x0C,0x18,0x06,0x18,0x03,0x18,0x01,0x98,0x01,0xD8,0x01,0x38,0x03,0x18,0x07,0x18,0x06,0x18,0x0C,0x18,0x1C,0x18,0x18,0x7E,0x7C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"k",75*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xF8,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x01,0xF8,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x00,0xEE,0x1C,0x9C,0x33,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0x8C,0x31,0xDE,0x7B,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x1E,0x0F,0xD8,0x18,0x38,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x7E,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x07,0x70,0x1C,0x10,0x30,0x18,0x30,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x0C,0x60,0x18,0x30,0x18,0x30,0x30,0x18,0xC0,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x9E,0x0F,0x58,0x18,0x38,0x30,0x18,0x20,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x60,0x18,0x30,0x38,0x30,0x78,0x18,0x98,0x07,0x18,0x00,0x18,0x00,0x18,0x00,0x18,0x00,0x7E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x23,0x30,0x3C,0x18,0x38,0x18,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x0C,0x30,0x08,0x30,0x18,0x38,0x30,0x3C,0xE0,0x33,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0x30,0x00,0xFC},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x7E,0x3C,0x60,0x66,0x60,0x61,0xE0,0x00,0xE0,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0x60,0x00,0xFE,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x27,0x30,0x38,0x18,0x30,0x18,0x20,0x18,0x00,0x70,0x00,0xE0,0x03,0x80,0x0F,0x00,0x1C,0x04,0x30,0x04,0x30,0x0C,0x30,0x1C,0x18,0xEC,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0xC0,0x00,0xE0,0x00,0xFC,0x1F,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x00,0xC0,0x20,0xC0,0x20,0x80,0x11,0x00,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x20,0x1E,0x3C,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x30,0x18,0x38,0x30,0xF4,0xE0,0x13,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x3C,0x18,0x18,0x18,0x08,0x38,0x08,0x30,0x04,0x30,0x04,0x70,0x02,0x60,0x02,0x60,0x02,0xE0,0x01,0xC0,0x01,0xC0,0x01,0xC0,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xDF,0xF7,0x8E,0x63,0x0C,0x23,0x8C,0x23,0x8C,0x23,0x98,0x13,0x98,0x13,0x58,0x16,0x58,0x16,0x70,0x0E,0x70,0x0E,0x70,0x0E,0x20,0x04,0x20,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x3E,0x70,0x08,0x70,0x04,0xE0,0x04,0xC0,0x02,0xC0,0x01,0x80,0x03,0x80,0x03,0x40,0x07,0x60,0x06,0x20,0x0C,0x10,0x0C,0x18,0x18,0x3E,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x7C,0x18,0x18,0x18,0x08,0x30,0x08,0x30,0x08,0x30,0x04,0x60,0x04,0x60,0x04,0xC0,0x02,0xC0,0x02,0xC0,0x02,0x80,0x01,0x80,0x01,0x80,0x01,0x80,0x00,0x80,0x00,0x80,0x00,0x4C,0x00,0x3C,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x1F,0x0C,0x0C,0x04,0x0E,0x04,0x06,0x00,0x03,0x80,0x03,0x80,0x01,0xC0,0x00,0xE0,0x00,0x70,0x20,0x30,0x20,0x38,0x30,0x1C,0x18,0xFC,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x00,0x08,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x02,0x80,0x01,0x00,0x02,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x04,0x00,0x08,0x00,0x30,0x00,0x00},/*"{",91*/
{0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01},/*"|",92*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x10,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x40,0x00,0x80,0x01,0x40,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x20,0x00,0x10,0x00,0x0C,0x00,0x00,0x00},/*"}",93*/
{0x00,0x00,0x38,0x00,0xC4,0x00,0x86,0x40,0x02,0x61,0x00,0x22,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};

typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[24];
}typFNT_GB12;


const typFNT_GB12 tfont12[]={
"中",0x20,0x00,0x20,0x00,0x20,0x00,0xFE,0x03,0x22,0x02,0x22,0x02,0x22,0x02,0xFE,0x03,
0x22,0x02,0x20,0x00,0x20,0x00,0x20,0x00,/*"中",0*/
"景",0xFC,0x01,0x04,0x01,0xFC,0x01,0x04,0x01,0xFC,0x01,0x20,0x00,0xFF,0x07,0x04,0x01,
0xFC,0x01,0x20,0x00,0x24,0x01,0x32,0x02,/*"景",1*/
"园",0xFE,0x07,0x02,0x04,0xFA,0x04,0x02,0x04,0x02,0x04,0xFE,0x05,0x52,0x04,0x52,0x04,
0x4A,0x05,0x86,0x05,0x02,0x04,0xFE,0x07,/*"园",2*/
"电",0x10,0x00,0x10,0x00,0xFF,0x01,0x11,0x01,0x11,0x01,0xFF,0x01,0x11,0x01,0x11,0x01,
0xFF,0x01,0x11,0x04,0x10,0x04,0xE0,0x07,/*"电",3*/
"子",0x00,0x00,0xFC,0x01,0x80,0x00,0x40,0x00,0x20,0x00,0x20,0x00,0xFF,0x07,0x20,0x00,
0x20,0x00,0x20,0x00,0x20,0x00,0x38,0x00,/*"子",4*/

};

typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[32];
}typFNT_GB16;


//阴码、逐行式、逆向、C51
const typFNT_GB16 tfont16[]={

 //立(0) 创(1) 开(2) 发(3) 板(4) 简(5) 易(6) 入(7) 门(8) 套(9) 件(10)

"立",0x40,0x00,0x80,0x00,0x80,0x00,0x00,0x00,0xFE,0x3F,0x00,0x00,0x00,0x08,0x08,0x08,
0x10,0x04,0x10,0x04,0x20,0x02,0x20,0x02,0x20,0x01,0x00,0x00,0xFF,0x7F,0x00,0x00,/*"立",0*/

"创",0x10,0x20,0x10,0x20,0x28,0x20,0x48,0x24,0x84,0x24,0x02,0x25,0x7D,0x24,0x44,0x24,
0x44,0x24,0x44,0x24,0x54,0x24,0x24,0x24,0x04,0x21,0x04,0x21,0xF8,0x29,0x00,0x10,/*"创",1*/

"开",0x00,0x00,0xFE,0x3F,0x10,0x04,0x10,0x04,0x10,0x04,0x10,0x04,0x10,0x04,0xFF,0x7F,
0x10,0x04,0x10,0x04,0x10,0x04,0x10,0x04,0x08,0x04,0x08,0x04,0x04,0x04,0x02,0x04,/*"开",2*/

"发",0x80,0x00,0x88,0x08,0x88,0x10,0x44,0x00,0xFC,0x3F,0x40,0x00,0x20,0x00,0xE0,0x1F,
0x50,0x10,0x90,0x10,0x88,0x08,0x08,0x05,0x04,0x02,0x02,0x05,0xC0,0x18,0x38,0x60,/* " 发 ",3*/

"板",0x08,0x10,0x08,0x38,0x88,0x07,0x88,0x00,0xBF,0x00,0x88,0x3F,0x8C,0x22,0x9C,0x22,
0xAA,0x22,0xAA,0x14,0x89,0x14,0x88,0x08,0x88,0x08,0x48,0x14,0x48,0x22,0x28,0x41,/*"板",4*/

"简",0x04,0x02,0xFC,0x7E,0x12,0x09,0xA1,0x10,0x08,0x00,0xD0,0x1F,0x04,0x10,0xE4,0x13,
0x24,0x12,0x24,0x12,0xE4,0x13,0x24,0x12,0x24,0x12,0xE4,0x13,0x04,0x10,0x04,0x18,/*"简",0*/

"易",0xF0,0x0F,0x10,0x08,0x10,0x08,0xF0,0x0F,0x10,0x08,0x10,0x08,0xF0,0x0F,0x20,0x00,
0x10,0x00,0xF8,0x3F,0x44,0x22,0x42,0x22,0x20,0x21,0x10,0x21,0x88,0x14,0x40,0x08,/*"易",1*/

"入",0x20,0x00,0x40,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x40,0x01,0x40,0x01,0x40,0x01,
0x20,0x02,0x20,0x02,0x10,0x04,0x10,0x04,0x08,0x08,0x04,0x08,0x02,0x10,0x01,0x60,/*"入",2*/

"门",0x04,0x00,0xC8,0x3F,0x08,0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x20,
0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x20,0x02,0x28,0x02,0x10,/*"门",3*/

"套",0x80,0x00,0x80,0x00,0xFE,0x3F,0x40,0x01,0x20,0x02,0xF0,0x0F,0x2C,0x18,0xE3,0x67,
0x20,0x00,0xE0,0x07,0x20,0x00,0xFF,0x7F,0x20,0x00,0x10,0x08,0xF8,0x1F,0x00,0x10,/*"套",4*/

"件",0x10,0x04,0x10,0x04,0x90,0x04,0x88,0x04,0x88,0x3F,0x4C,0x04,0x4C,0x04,0x2A,0x04,
0x09,0x04,0xE8,0x7F,0x08,0x04,0x08,0x04,0x08,0x04,0x08,0x04,0x08,0x04,0x08,0x04,/*"件",5*/

};


typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[72];
}typFNT_GB24;

//阴码、逐行式、逆向、C51、字体=MS Gothic
const typFNT_GB24 tfont24[]={

//定(0) 速(1) 距(2)

"定",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x18,0x00,0x00,0x18,0x00,0xFC,0xFF,0x3F,0xFC,
0xFF,0x3F,0x0C,0x00,0x30,0x0C,0x00,0x30,0x0C,0x00,0x30,0xE0,0xFF,0x07,0xE0,0xFF,
0x07,0x00,0x18,0x00,0x00,0x18,0x00,0xC0,0x18,0x00,0xC0,0xF8,0x0F,0xC0,0xF8,0x0F,
0xC0,0x18,0x00,0xE0,0x18,0x00,0xE0,0x19,0x00,0x70,0x1F,0x00,0x38,0x3E,0x00,0x1C,
0xF8,0x3F,0x0C,0xC0,0x3F,0x00,0x00,0x00,/*"定",0*/
/* (24 X 24 , MS Gothic )*/

"速",0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0xC0,0x00,0x18,0xC0,0x00,0x38,0xFF,0x3F,0x70,
0xFF,0x3F,0x20,0xC0,0x00,0x00,0xFF,0x1F,0x00,0xFF,0x1F,0x00,0xC3,0x18,0x00,0xC3,
0x18,0x3E,0xFF,0x1F,0x3E,0xFF,0x1F,0x30,0xC0,0x00,0x30,0xF0,0x01,0x30,0xF8,0x07,
0x30,0xDC,0x1E,0xB0,0xCF,0x7C,0x30,0xC3,0x30,0xF0,0xC0,0x00,0xDC,0x03,0x00,0x8C,
0xFF,0x7F,0x04,0xFC,0x7F,0x00,0x00,0x00,/*"速",1*/
/* (24 X 24 , MS Gothic )*/

"距",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0xF3,0x3F,0xF8,0xF3,0x3F,0x18,
0x33,0x00,0x18,0x33,0x00,0x18,0x33,0x00,0xF8,0xF3,0x1F,0xF8,0xF3,0x1F,0xC0,0x30,
0x18,0xC0,0x30,0x18,0xCC,0x30,0x18,0xCC,0x37,0x18,0xCC,0xF7,0x1F,0xCC,0xF0,0x1F,
0xCC,0x30,0x18,0xCC,0x30,0x00,0xCC,0x30,0x00,0xCC,0x37,0x00,0xFC,0xF7,0x7F,0x7E,
0xF0,0x7F,0x04,0x30,0x00,0x00,0x00,0x00,/*"距",2*/
/* (24 X 24 , MS Gothic )*/

};


typedef struct
{
	unsigned char Index[2];
	unsigned char Msk[128];
}typFNT_GB32;


const typFNT_GB32 tfont32[]={

"中",0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x80,0x01,0x00,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,
0x10,0x80,0x01,0x0C,0xF0,0xFF,0xFF,0x0F,0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,
0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,
0x30,0x80,0x01,0x04,0x30,0x80,0x01,0x04,0xF0,0xFF,0xFF,0x07,0x30,0x80,0x01,0x04,
0x30,0x80,0x01,0x04,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,
0x00,0x80,0x01,0x00,0x00,0x80,0x01,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,/*"中",0*/

};

#endif

更新完成后，记得更新你的工程头文件路径：

点屏验证

在 empty.c 文件中添加以下测试代码：

#include "ti_msp_dl_config.h"
#include "mid_debug_led.h"
#include "mid_debug_uart.h"
#include "string.h"
#include "hw_lcd.h"

void ui_home_page(void);// 首页页面初始化


int main(void)
{
    SYSCFG_DL_init();

		debug_uart_init();

		lcd_init();

		ui_home_page();

    while (1)
		{

			delay_cycles(CPUCLK_FREQ / 1000 * 200);
    }
}

/*
功能说明：显示居中字符串函数用于显示居中的文字，计算文字的居中坐标
参数说明：  x=屏幕中心x坐标
        w=屏幕宽度
        y=屏幕中心y坐标
        h=屏幕高度
        str_len=字符串长度
        sizey=字体大小
        *str=需要显示的字符串
        color背景颜色
备注：GRAYBLUE 浅蓝色
      DARKBLUE 深蓝色
*/
void disp_x_center(int y, int str_len, uint16_t bc, unsigned char sizey, unsigned char* str)
{
    int str_center_x = (sizey * str_len) / 2;//字符串x=字体大小*字符串长度/2
    int str_center_y = sizey / 2;//字符串y=字体大小/2

    //显示居中坐标的文字
	  LCD_ArcRect(screen_center_x - str_center_x - 10, y, screen_center_x + str_center_x + 10, sizey+y, bc);
    LCD_ShowChinese(screen_center_x - str_center_x,y,str,WHITE,bc,sizey,1);
}

/*
功能说明：显示字符串矩形函数用于显示矩形的文字，计算文字的居中坐标
参数说明：  x=矩形起始x坐标
        w=矩形宽度
        y=矩形起始y坐标
        h=矩形高度
        str_len=字符串长度
        sizey=字体大小
        *str=需要显示的字符串
        color背景颜色
备注：GRAYBLUE 浅蓝色
      DARKBLUE 深蓝色
*/
void disp_string_rect(int x, int w, int y, int h, int str_len, int sizey, unsigned char* str, int color)
{
    int str_center_x = (sizey * str_len) / 2; //字符串x = 字体大小*字符串长度/2
    int rect_center_x = x + (w / 2); //矩形中心x
    int str_center_y = sizey  / 2; //字符串y=字体大小/2
    int rect_center_y = y + (h / 2); //矩形中心y

    //显示背景矩形
	  LCD_ArcRect(x, y, x + w, y + h, color);
    //显示字符串
    LCD_ShowChinese(rect_center_x - str_center_x, rect_center_y - str_center_y,str,WHITE,color,sizey,1);
}

/*
功能说明：显示选择框函数用于显示选择框：  x=按钮起始X坐标
        w=显示的按钮选择框宽度
        y=按钮起始Y坐标
        h=显示的按钮选择框高度
        line_length=选择框边线长度
        interval=选择框边线间隔 按钮选择框边框之间的距离
        color=选择框边线颜色
*/
void disp_select_box(int x, int w, int y, int h, int line_length, int interval, int color)
{
    //计算按钮选择框边框之间的距离+边线
    x = x - interval;
    w = w + (interval + interval);
    y = y - interval;
    h = h + (interval + interval);
    //左上角
	  LCD_DrawLine(x, y, x + line_length, y, color);
    LCD_DrawLine(x, y, x, y + line_length, color);
    //右上角
	  LCD_DrawLine(x + w, y, x + w - line_length, y, color);
    LCD_DrawLine(x + w, y, x + w, y + line_length, color);
    //左下角
	  LCD_DrawLine(x, y + h, x + line_length, y + h, color);
    LCD_DrawLine(x, y + h, x, y + h - line_length, color);
    //右下角
	  LCD_DrawLine(x + w, y + h, x + w - line_length, y + h, color);
    LCD_DrawLine(x + w, y + h, x + w, y + h - line_length, color);
}

//家居页面初始化
void ui_home_page(void)
{
    //关闭背光
	  LCD_BLK_Clr();

    //显示全屏背景颜色
    LCD_Fill(0,0,LCD_W,LCD_H,BLACK);
    //显示标题
    disp_x_center(3,5,BLUE,16,(unsigned char *)"立创开发板");
    //显示副标题
    disp_x_center(3+16+3,9,BLUE,16,(unsigned char *)"简易PID入门套件");

    int x = 40;
    int x_offset = 80;
    int y = 65;
    int y_offset = 80;
    //显示第一个按钮：定速
    disp_string_rect(x, x_offset, y, y_offset, 2, 24, "定速", BLUE);
    int x2 = 200;
    int x2_offset = 80;
    int y2 = 65;
    int y2_offset = 80;
    //显示第二个按钮：定距
		disp_string_rect(x2, x2_offset, y2, y2_offset, 2, 24, "定距", BLUE);

    //显示选择框
		disp_select_box(40,80,65,80,10,5,WHITE);

    //打开背光
		LCD_BLK_Set();
}

烧录代码将会显示如下：

例程下载地址

https://gitee.com/lcsc/easy-pid-beginner-kit/tree/master/examples/Keil/

说明

如果无法显示内容，请调整工程的堆栈为0x400。

开发板keil环境入门手册

开发板CCS-Theia入门手册

常见模块移植手册CCS

显示类

传感器类

无线通信类

控制类

项目案例

电赛TI：简易PID入门项目

开发板keil环境入门手册

开发板CCS-Theia入门手册

常见模块移植手册

显示类

传感器类

无线通信类

控制类

常见问题解决方法

开发板Keil入门手册

开发板CCS入门手册

常见模块移植手册

显示类

传感器类

无线通信类

控制类

彩屏驱动

本节介绍

屏幕来源

连接屏幕

屏幕驱动方式

适配屏幕并点亮

配置流程

配置引脚

编写 SPI 发送代码

移植厂家驱动

点屏验证

电赛TI：简易PID入门项目

显示类

传感器类

无线通信类

控制类

彩屏驱动 ​

本节介绍 ​

屏幕来源 ​

连接屏幕 ​

屏幕驱动方式 ​

适配屏幕并点亮 ​

配置流程 ​

配置引脚 ​

编写 SPI 发送代码 ​

移植厂家驱动 ​

点屏验证 ​

彩屏驱动

本节介绍

屏幕来源

连接屏幕

屏幕驱动方式

适配屏幕并点亮

配置流程

配置引脚

编写 SPI 发送代码

移植厂家驱动

点屏验证
